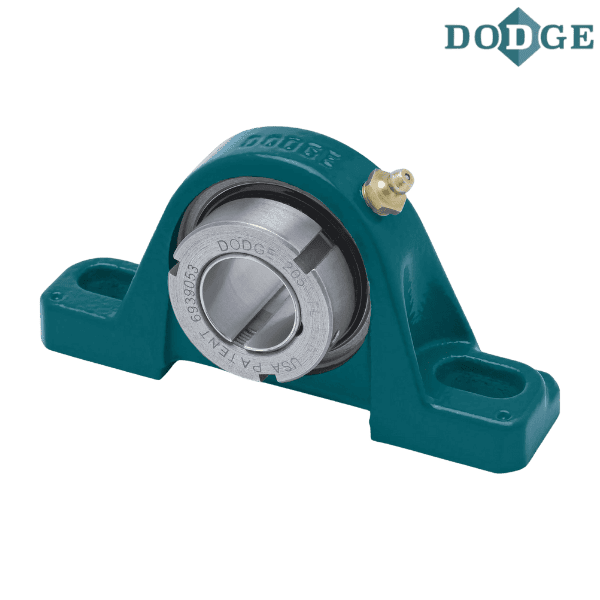

136267 DODGE - P2B-GTM-85M

Brand - DODGE
Item Number - 136267 DODGE - P2B-GTM-85M
Category - GRIP TIGHT Adapter Ball Bearings (GMT Medium Duty Pillow Blocks)
Series - 218
Shaft Size (mm) - 85
Description - P2B-GTM-85M
Part Number (Unit without Adapter Sleeve and Nut) - 129454
Description (Unit without Adapter Sleeve and Nut) - P2B-GT-18
Part Number (Adapter Sleeve and Lock Nut Assembly) - 136571
Description (Adapter Sleeve and Lock Nut Assembly) - AN-GTM-18-85M-D
Weight (kg) - 14.1

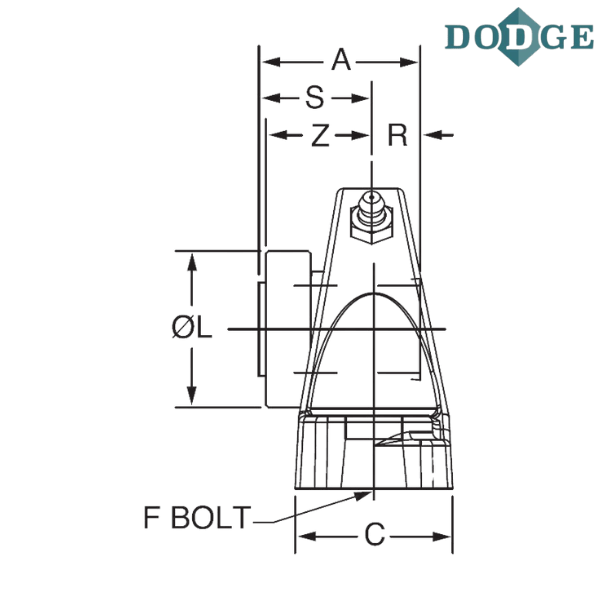

Length Through Bore (A) mm - 71.1

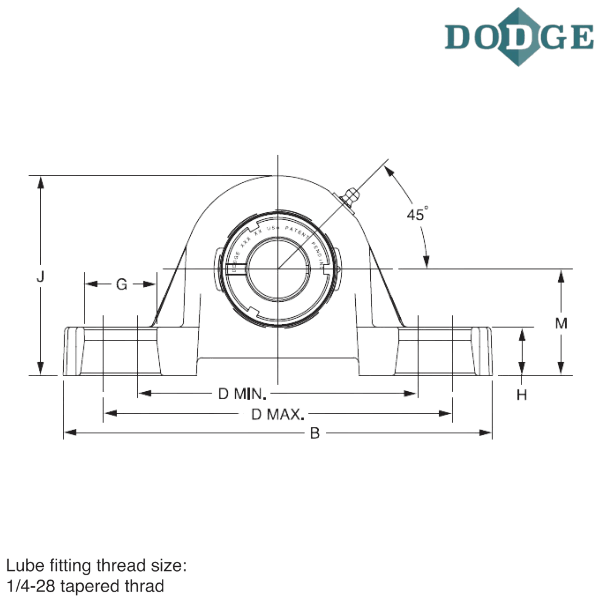

Overall Length (B) mm - 355.6
Width (C) mm - 85.9
Bolt to Bolt Minimum Distance (D min) mm - 262.1
Bolt to Bolt Maximum Distance (D max) mm - 295.1
F-Bolt Diameter - M22
G (mm) - 40.4
H (mm) - 33.3
Overall Height (J) mm - 203.2
L (mm) - 131.8
Base to Center Height (M) mm - 101.6
R (mm) - 24.4
S (mm) - 46.7

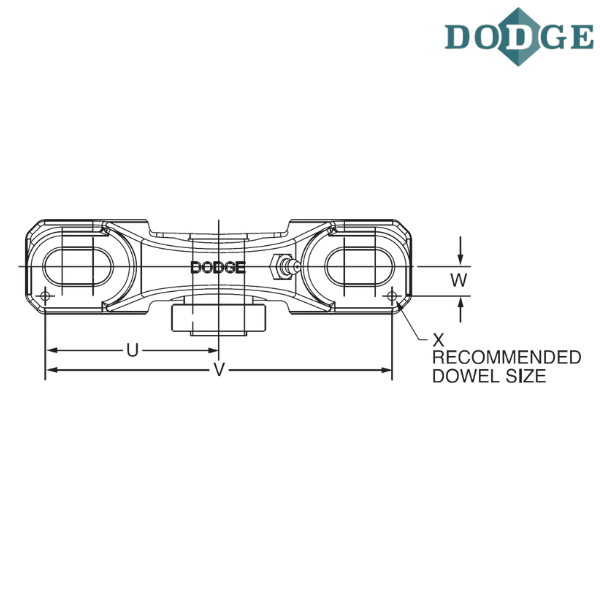

U (mm) - 167.6
V (mm) - 335.3
W (mm) - 30.2
X (mm) - 3
Z (mm) - 46
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
P2B - 2-bolt base pillow block
GTM - Wide inner ring, medium duty, thin wall adapter locking
M - Metric
