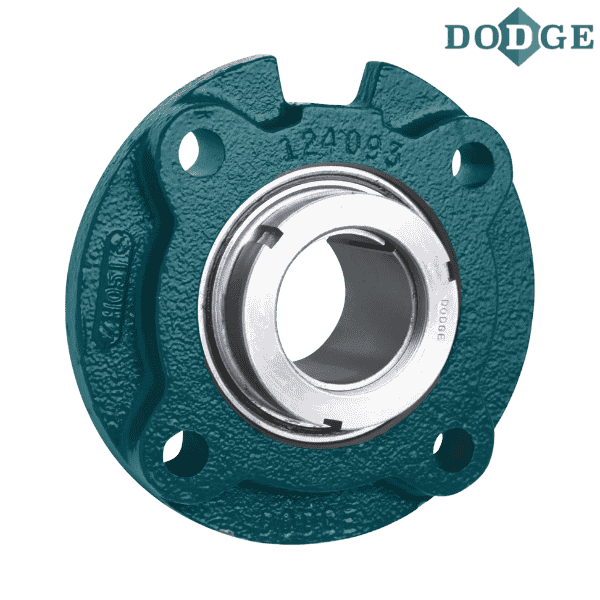

136287 DODGE - FC-GTM-30M

Brand - DODGE
Item Number - 136287 DODGE - FC-GTM-30M
Category - GRIP TIGHT Adapter Ball Bearings (GTM Medium Duty Piloted Flange Bearings)
Series - 207
Shaft Size (mm) - 30
Description - FC-GTM-30M
Part Number (Unit without Adapter Sleeve and Lock Nut) - 129502
Description (Unit without Adapter Sleeve and Lock Nut) - FC-GT-07
Part Number (Adapter Sleeve and Lock Nut Assembly) - 136562
Description (Adapter Sleeve and Lock Nut Assembly) - AN-GTM-07-30M-D
Weight (kg) - 2

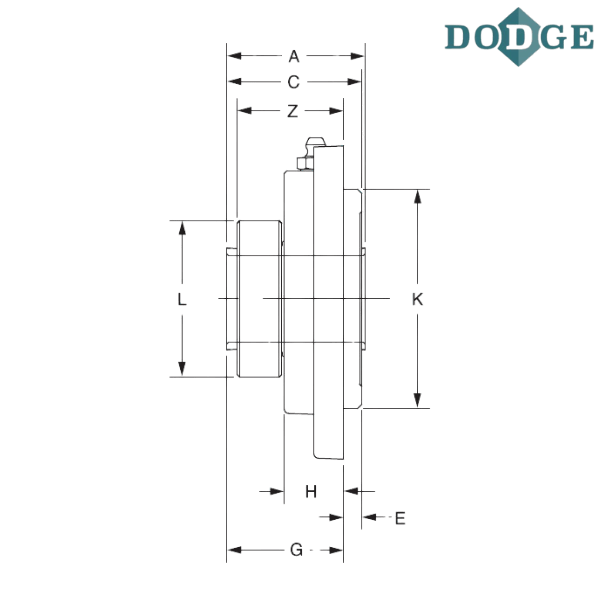

Length Through Bore (A) mm - 41.1

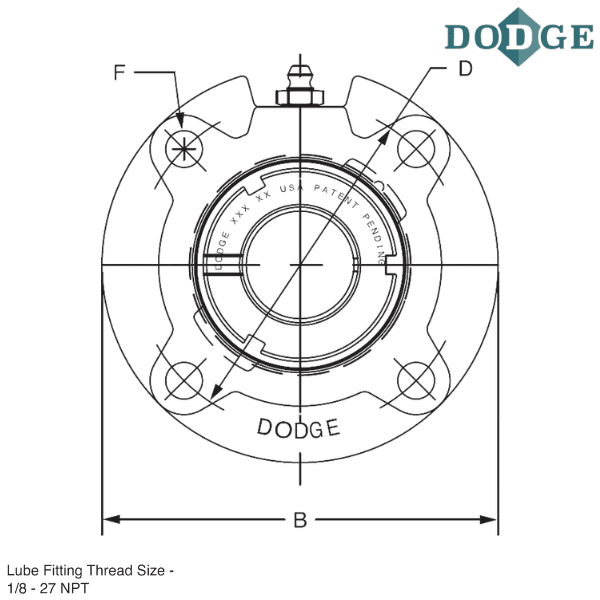

Overall Length (B) mm - 127
Thickness (C) mm - 46
Bolt Circle (D) mm - 104.9
Pilot Depth (E) mm - 9.7
F-Bolt Diameter - M10
G (mm) - 36.6
H (mm) - 21.3
Pilot Diameter (K) mm - 85.73/85.67
L (mm) - 60.5
Z (mm) - 37.8
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
FC - Flanged cartridge (piloted flange)
GTM - Wide inner ring, medium duty, thin wall adapter locking
M - Metric

** Images are for representation purposes only
