136288 DODGE - FC-GTM-35M

Brand - DODGE
Item Number - 136288 DODGE - FC-GTM-35M
Category - GRIP TIGHT Adapter Ball Bearings (GTM Medium Duty Piloted Flange Bearings)
Series - 208
Shaft Size (mm) - 35
Description - FC-GTM-35M
Part Number (Unit without Adapter Sleeve and Lock Nut) - 129503
Description (Unit without Adapter Sleeve and Lock Nut) - FC-GT-08
Part Number (Adapter Sleeve and Lock Nut Assembly) - 136563
Description (Adapter Sleeve and Lock Nut Assembly) - AN-GTM-08-35M-D
Weight (kg) - 2.5

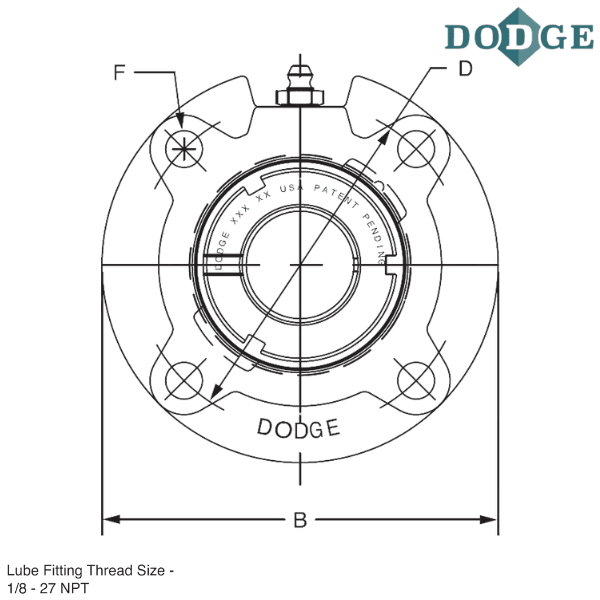

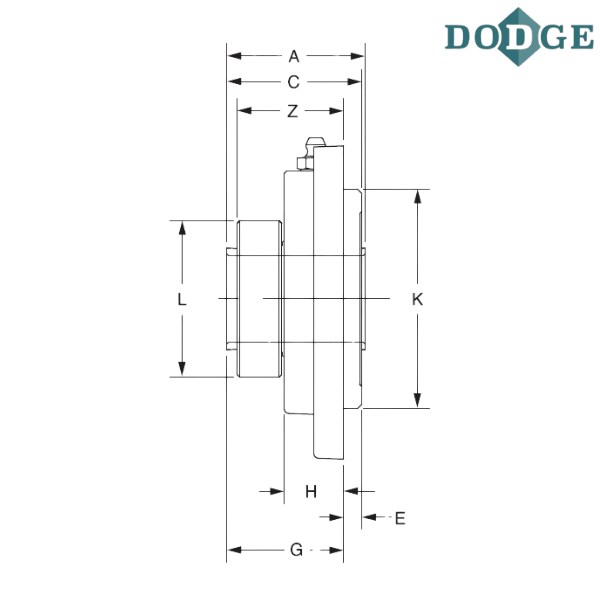

Length Through Bore (A) mm - 46.7
Overall Length (B) mm - 133.4
Thickness (C) mm - 51.1
Bolt Circle (D) mm - 111.3
Pilot Depth (E) mm - 11.2
F-Bolt Diameter - M12
G (mm) - 40.1
H (mm) - 22.6
Pilot Diameter (K) mm - 92.08/92.02
L (mm) - 66.5
Z (mm) - 40.1
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
FC - Flanged cartridge (piloted flange)
GTM - Wide inner ring, medium duty, thin wall adapter locking
M - Metric

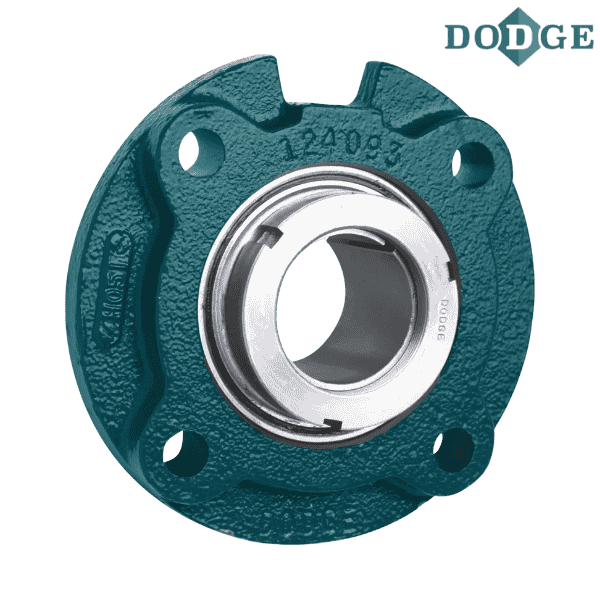

** Images are for representation purposes only
