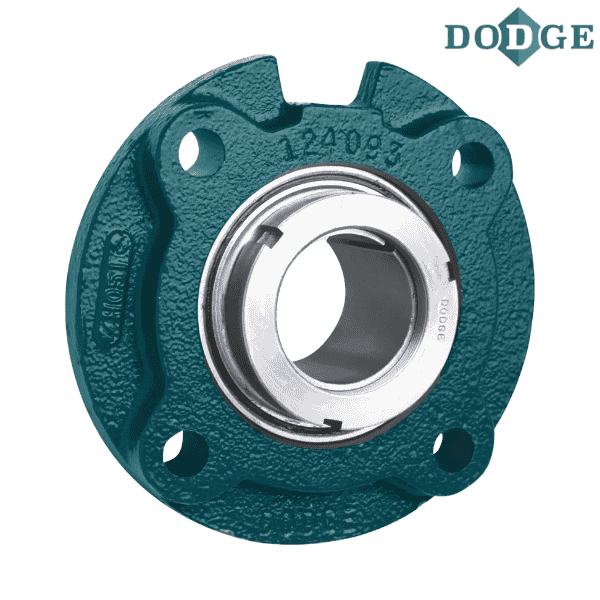

136289 DODGE - FC-GTM-40M

Brand - DODGE
Item Number - 136289 DODGE - FC-GTM-40M
Category - GRIP TIGHT Adapter Ball Bearings (GTM Medium Duty Piloted Flange Bearings)
Series - 209
Shaft Size (mm) - 40
Description - FC-GTM-40M
Part Number (Unit without Adapter Sleeve and Lock Nut) - 129504
Description (Unit without Adapter Sleeve and Lock Nut) - FC-GT-09
Part Number (Adapter Sleeve and Lock Nut Assembly) - 136564
Description (Adapter Sleeve and Lock Nut Assembly) - AN-GTM-09-40M-D
Weight (kg) - 3

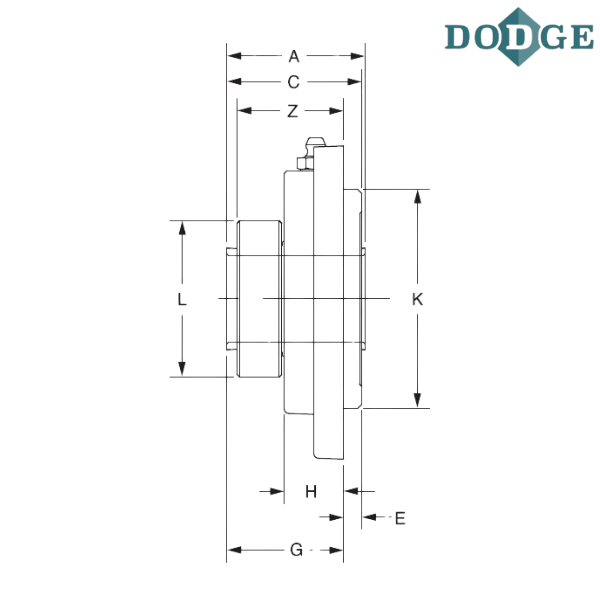

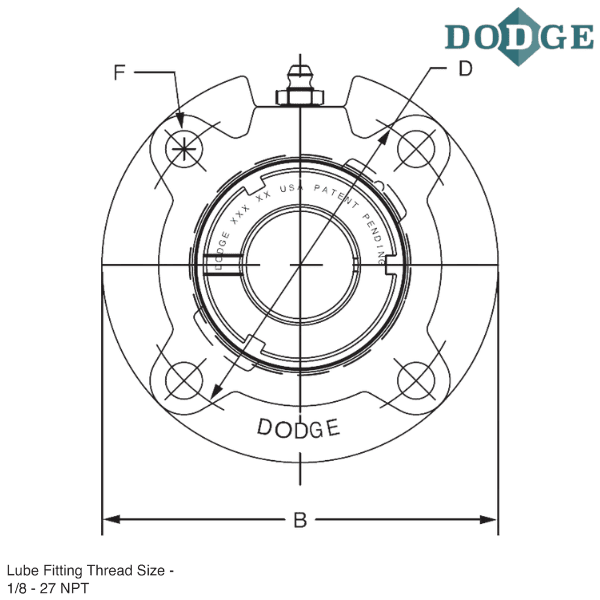

Length Through Bore (A) mm - 47
Overall Length (B) mm - 146.1
Thickness (C) mm - 50
Bolt Circle (D) mm - 120.7
Pilot Depth (E) mm - 11.2
F-Bolt Diameter - M12
G (mm) - 38.9
H (mm) - 23.1
Pilot Diameter (K) mm - 101.60/101.55
L (mm) - 72.6
Z (mm) - 39.9
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
FC - Flanged cartridge (piloted flange)
GTM - Wide inner ring, medium duty, thin wall adapter locking
M - Metric

** Images are for representation purposes only
