136295 DODGE - FC-GTM-85M

Brand - DODGE
Item Number - 136295 DODGE - FC-GTM-85M
Category - GRIP TIGHT Adapter Ball Bearings (GTM Medium Duty Piloted Flange Bearings)
Series - 218
Shaft Size (mm) - 85
Description - FC-GTM-85M
Part Number (Unit without Adapter Sleeve and Lock Nut) - 129510
Description (Unit without Adapter Sleeve and Lock Nut) - FC-GT-18
Part Number (Adapter Sleeve and Lock Nut Assembly) - 136571
Description (Adapter Sleeve and Lock Nut Assembly) - AN-GTM-18-85M-D
Weight (kg) - 17.8
Length Through Bore (A) mm - 71.1

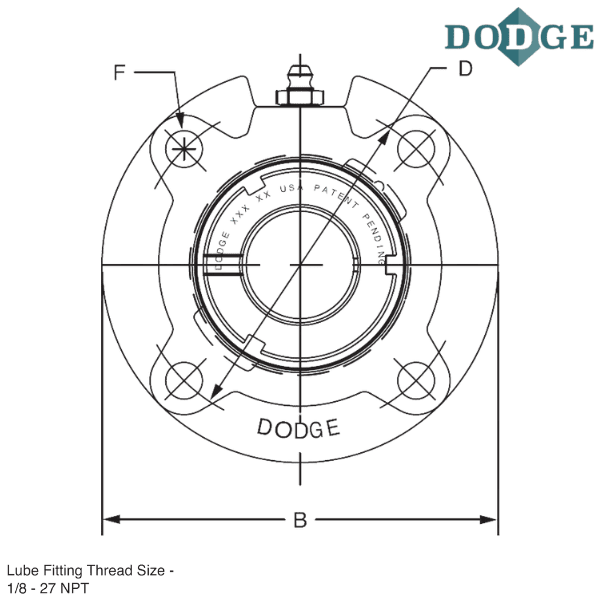

Overall Length (B) mm - 260.4
Thickness (C) mm - 90.7
Bolt Circle (D) mm - 219.1
Pilot Depth (E) mm - 28.7
F-Bolt Diameter - M18
G (mm) - 62
H (mm) - 41.4
Pilot Diameter (K) mm - 187.33/187.27
L (mm) - 131.8
Z (mm) - 61.5
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
FC - Flanged cartridge (piloted flange)
GTM - Wide inner ring, medium duty, thin wall adapter locking
M - Metric

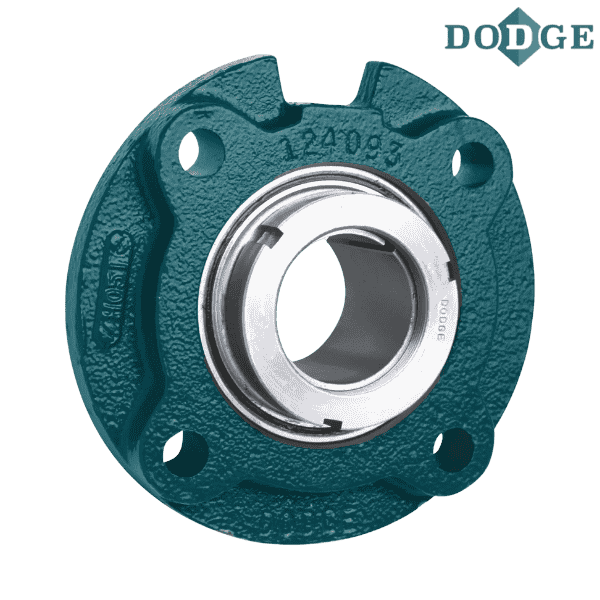

** Images are for representation purposes only
