136298 DODGE - NSTU-GTM-35M

Brand - DODGE
Item Number - 136298 DODGE - NSTU-GTM-35M
Category - GRIP TIGHT Adapter Ball Bearings (GTM Medium Duty Narrow Slot Take-Up Bearings)
Series - 208
Shaft Size (mm) - 35
Description - NSTU-GTM-35M
Part Number (Unit without Adapter Sleeve and Lock Nut) - 136214
Description (Unit without Adapter Sleeve and Lock Nut) - NSTU-GT-08
Part Number (Adapter Sleeve and Lock Nut Assembly) - 136563
Description (Adapter Sleeve and Lock Nut Assembly) - AN-GTM-08-35M-D
Weight (kg) - 2.1
Take-Up Frame Size - NS400

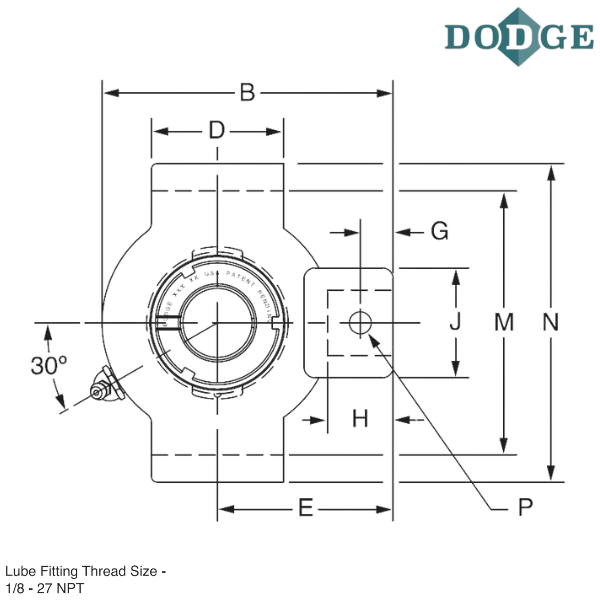

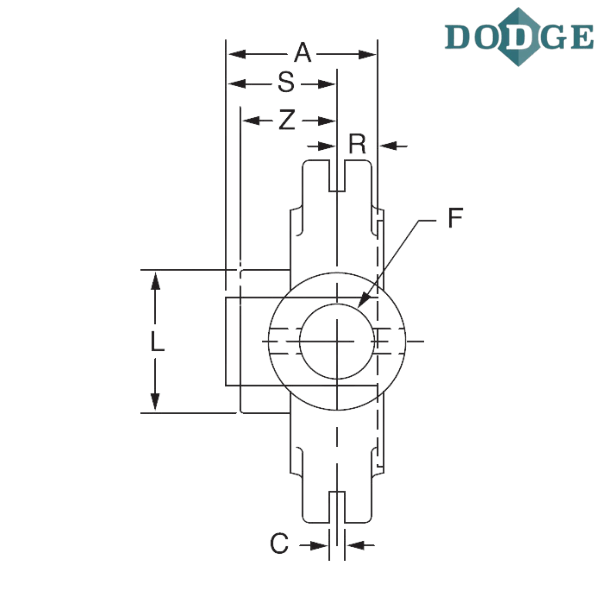

Length Through Bore (A) mm - 46.7
Overall Length (B) mm - 136.7
C (mm) - 7.95
D (mm) - 76.2
E (mm) - 82.6
F (Screw Diameter) mm - 22.2
G (mm) - 16.8
H (mm) - 29.5
J (mm) - 41.4
L (mm) - 66.5
M (mm) - 101.98/101.22
Overall Width (N) mm - 120.7
Pin Diameter (P) mm - 9.7
R (mm) - 15.5
S (mm) - 31.2
Z (mm) - 31.2
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
NSTU - Narrow slot take-up
GTM - Wide inner ring, medium duty, thin wall adapter locking
M - Metric

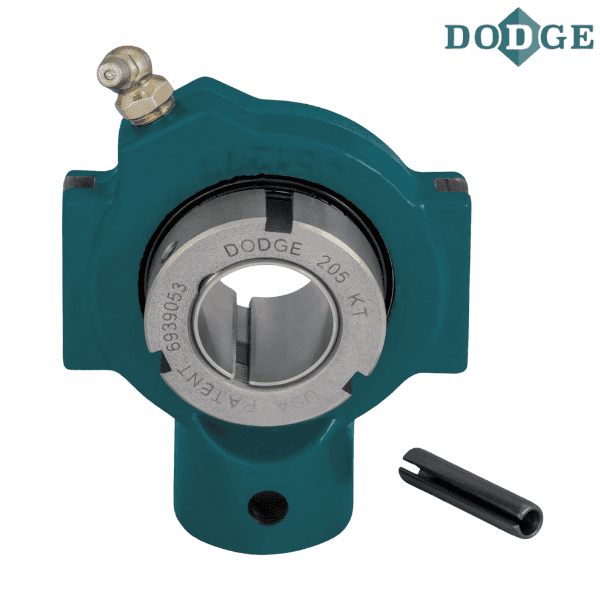

** Images are for representation purposes only
