136312 DODGE - WSTU-GTM-75M

Brand - DODGE
Item Number - 136312 DODGE - WSTU-GTM-75M
Category - GRIP TIGHT Adapter Ball Bearings (GTM Medium Duty Wide Slot Take-Up Bearings)
Series - 216
Shaft Size (mm) - 75
Description - WSTU-GTM-75M
Part Number (Unit without Adapter Sleeve and Lock Nut) - 136230
Description (Unit without Adapter Sleeve and Lock Nut) - WSTU-GT-16
Part Number (Adapter Sleeve and Lock Nut Assembly) - 136570
Description (Adapter Sleeve and Lock Nut Assembly) - AN-GTM-16-75M-D
Weight (kg) - 9.1
Take- Up Frame Size - WS608

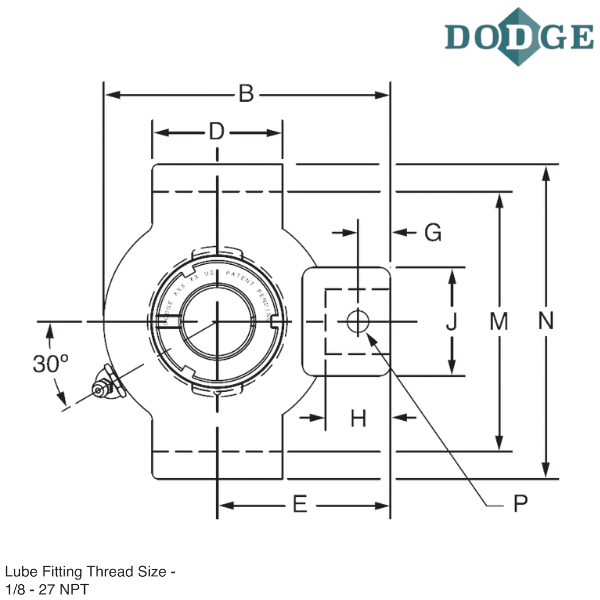

Length Through Bore (A) mm - 68.6
Overall Length (B) mm - 231.9
C (mm) - 27
D (mm) - 120.7
E (mm) - 60.5
F (Screw Diameter) mm - 38.1
G (mm) - 20.6
H (mm) - 31.8
J (mm) - 111.3
K (mm) - 69.9
L (mm) - 119.1
M (mm) - 164.72/165.48
Overall Width (N) mm - 184.2
R (mm) - 22.6
S (mm) - 46
Thickness (T) mm - 69.9
Z (mm) - 45.2
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
WSTU - Wide slot take-up
GTM - Wide inner ring, medium duty, thin wall adapter locking
M - Metric

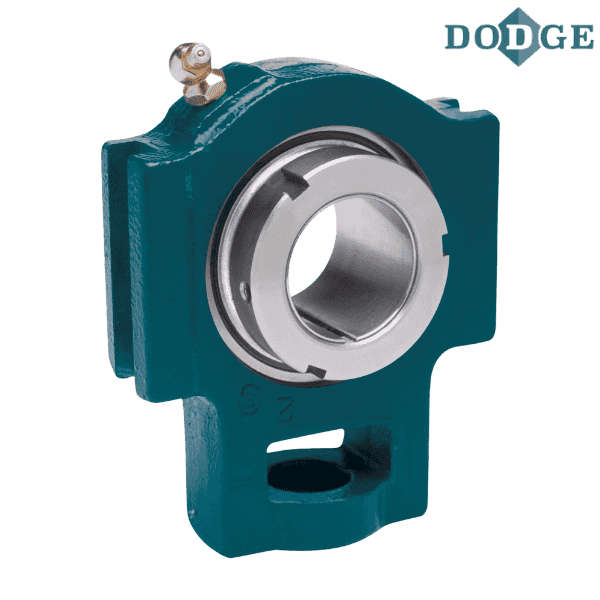

** Images are for representation purposes only
