136324 DODGE - WSTU-GTEZ-25M-PCR

Brand - DODGE
Item Number - 136324 DODGE - WSTU-GTEZ-25M-PCR
Category - E-Z KLEEN Mounted Bearings (GTEZ Normal Duty Polymer Housed Wide Solt Take-Up Bearings)
Series - 205
Shaft Size (mm) - 25
Description - WSTU-GTEZ-25M-PCR
Part Number (Unit without Adapter & Nut) - 136328
Description (Unit without Adapter & Nut) - WSTU-GTEZ-05-PCR
Part Number (Adapter & Nut Assembly) - 129981
Description (Adapter & Nut Assembly) - AN-GT-05-25M-CR
Weight (kg) - 0.5
Take-Up Frame Number Reference - WS300

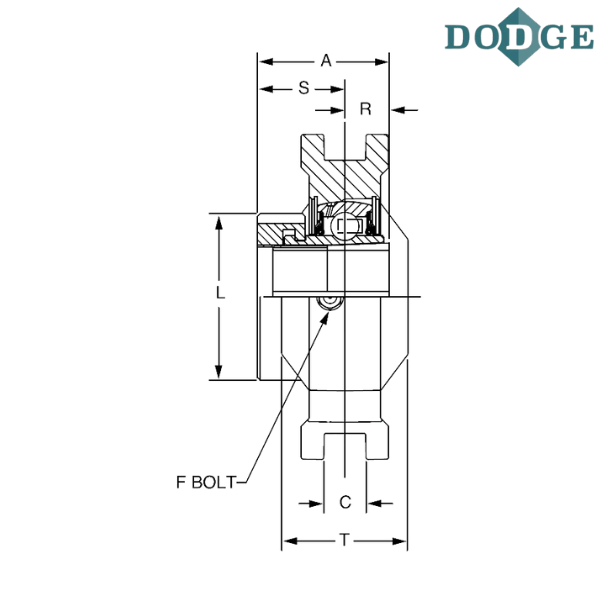

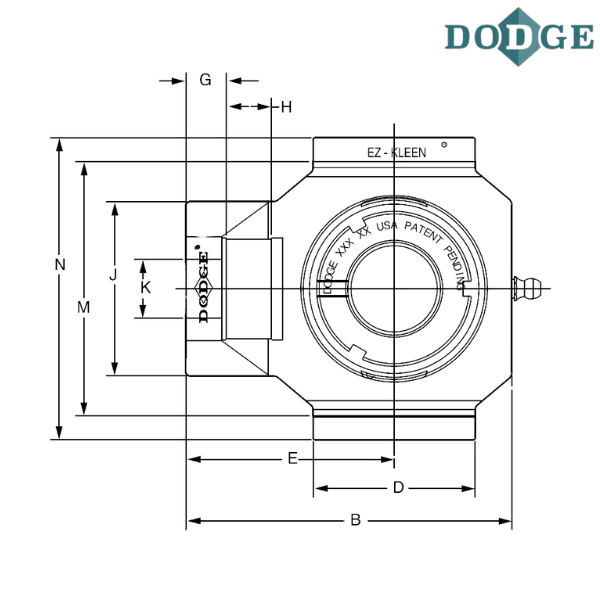

Length Through Bore (A) mm - 37.1
Overall Length (B) mm - 100.8
C (mm) - 13.46
D (mm) - 55.9
E (mm) - 65
F (Thread Shaft) mm - 15.9
G (mm) - 14.2
H (mm) - 16.5
J (mm) - 53.8
K (mm) - 18
L (mm) - 45.7
M (mm) - 76.96/76.20
Overall Width (N) mm - 92.2
R (mm) - 12.2
S (mm) - 24.9
T (mm) - 35.1
Z (mm) - 43.7
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
WSTU - Wide slot take-up
GT - Wide inner ring, normal duty, thin wall adapter locking
EZ - E-Z KLEEN/ULTRA KLEEN (used with polymer or stainless steel housed units)
M - Metric
P - Polymer housing
CR - Corrosion resistant insert

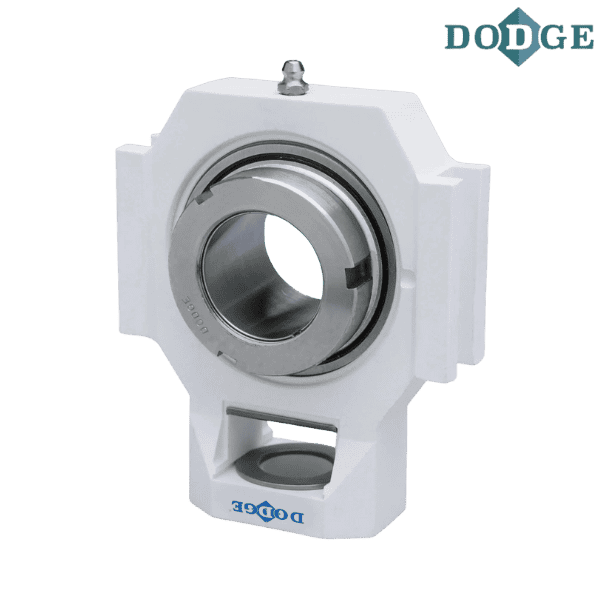

** Images are for representation purposes only
