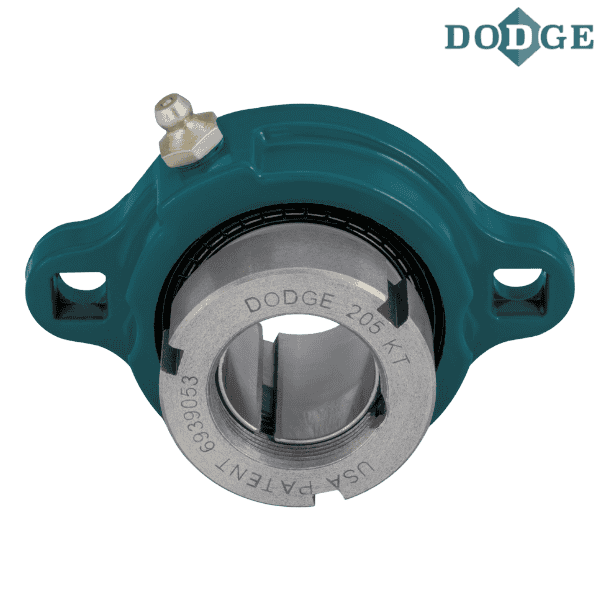

136333 DODGE - LFT-GT-012

Brand - DODGE
Item Number - 136333 DODGE - LFT-GT-012
Category - GRIP TIGHT Adapter Ball Bearings (GT LFT Normal Duty 2-Bolt Flange Bearings)
Series - 204
Shaft Size (inch) - 0.75
Description - LFT-GT-012
Part Number (Unit without Adapter Sleeve and Nut) - 136356
Description (Unit without Adapter Sleeve and Nut) - LFT-GT-04
Part Number (Adapter and Nut Assembly) - 136522
Description (Adapter and Nut Assembly) - AN-GT-04-012-D
Weight (lbs) - 0.91

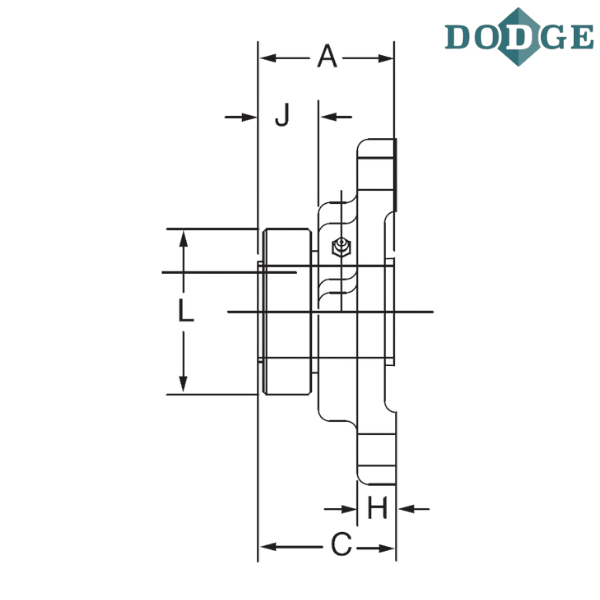

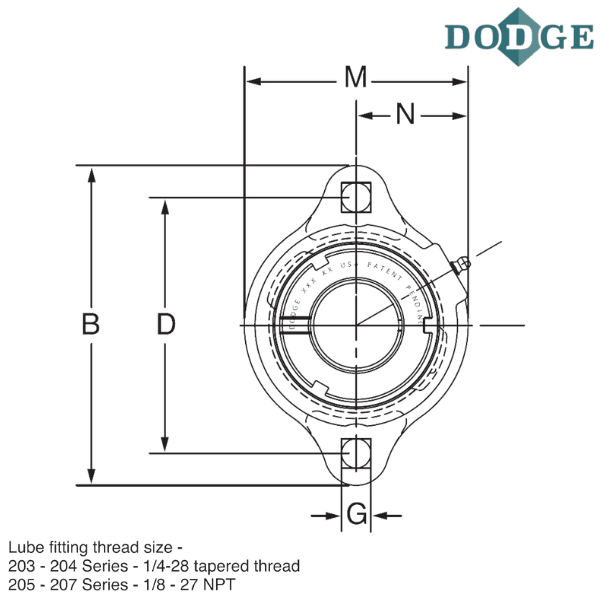

Length Through Bore (A) inch - 1.48
Overall Length (B) inch - 3.56
Thickness (C) inch - 1.51
Bolt Center to Center Length (D) inch - 2.81
G (inch) - 0.34
H (inch) - 0.42
J (inch) - 0.66
L (inch) - 1.5
Overall Width (M) inch - 2.38
N (inch) - 1.34
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
LFT - 2-bolt light duty flange
GT - Wide inner ring, normal duty, thin wall adapter locking

** Images are for representation purposes only
