136336 DODGE - LFT-GT-100

Brand - DODGE
Item Number - 136336 DODGE - LFT-GT-100
Category - GRIP TIGHT Adapter Ball Bearings (GT LFT Normal Duty 2-Bolt Flange Bearings)
Series - 205
Shaft Size (inch) - 1
Description - LFT-GT-100
Part Number (Unit without Adapter Sleeve and Nut) - 136357
Description (Unit without Adapter Sleeve and Nut) - LFT-GT-05
Part Number (Adapter and Nut Assembly) - 136524
Description (Adapter and Nut Assembly) - AN-GT-05-100-D
Weight (lbs) - 0.97

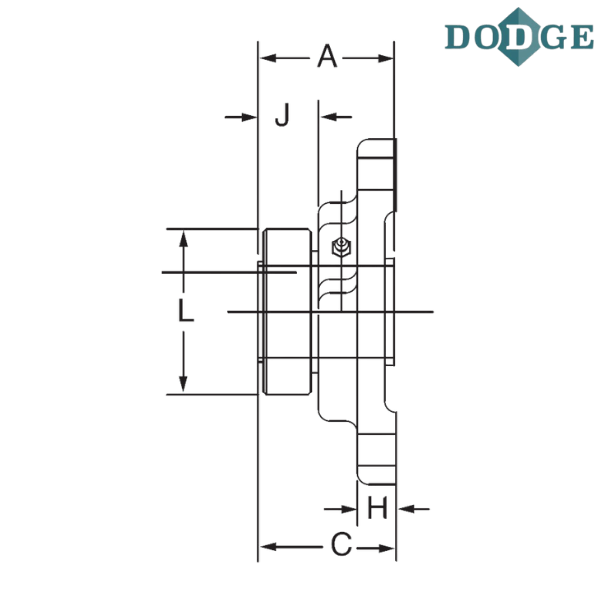

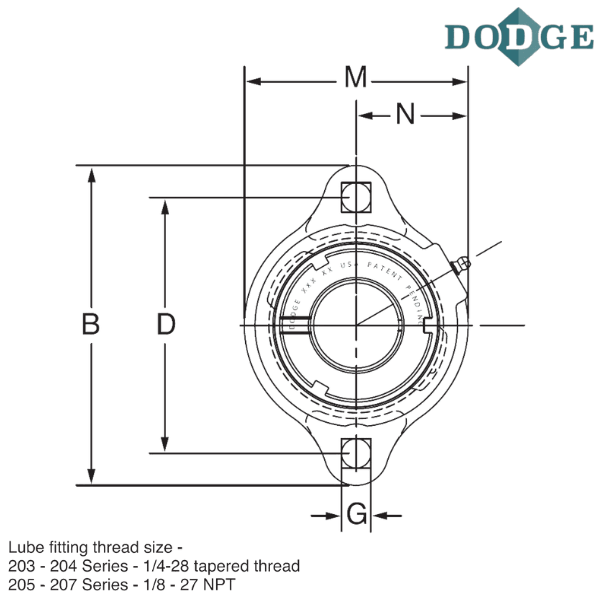

Length Through Bore (A) inch - 1.46
Overall Length (B) inch - 3.75
Thickness (C) inch - 1.46
Bolt Center to Center Length (D) inch - 3
G (inch) - 0.34
H (inch) - 0.42
J (inch) - 0.58
L (inch) - 1.8
Overall Width (M) inch - 2.63
N (inch) - 1.44
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
LFT - 2-bolt light duty flange
GT - Wide inner ring, normal duty, thin wall adapter locking

** Images are for representation purposes only
