136341 DODGE - LFT-GT-106

Brand - DODGE
Item Number - 136341 DODGE - LFT-GT-106
Category - GRIP TIGHT Adapter Ball Bearings (GT LFT Normal Duty 2-Bolt Flange Bearings)
Series - 207
Shaft Size (inch) - 1.375
Description - LFT-GT-106
Part Number (Unit without Adapter Sleeve and Nut) - 136359
Description (Unit without Adapter Sleeve and Nut) - LFT-GT-07
Part Number (Adapter and Nut Assembly) - 136591
Description (Adapter and Nut Assembly) - AN-GT-07-106-D
Weight (lbs) - 1.89

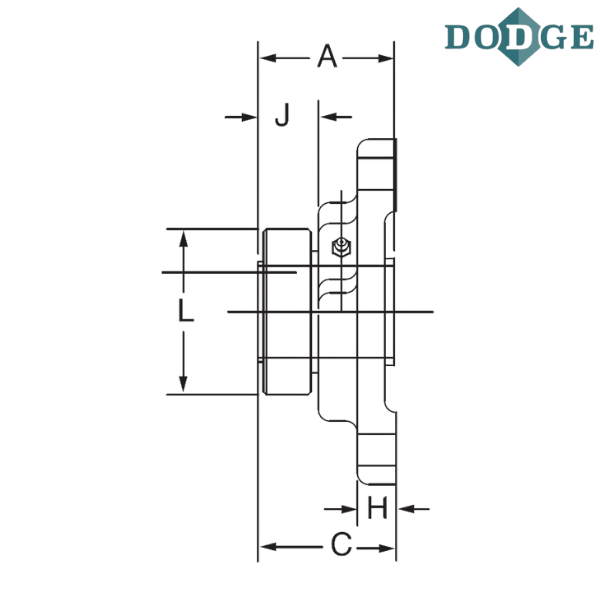

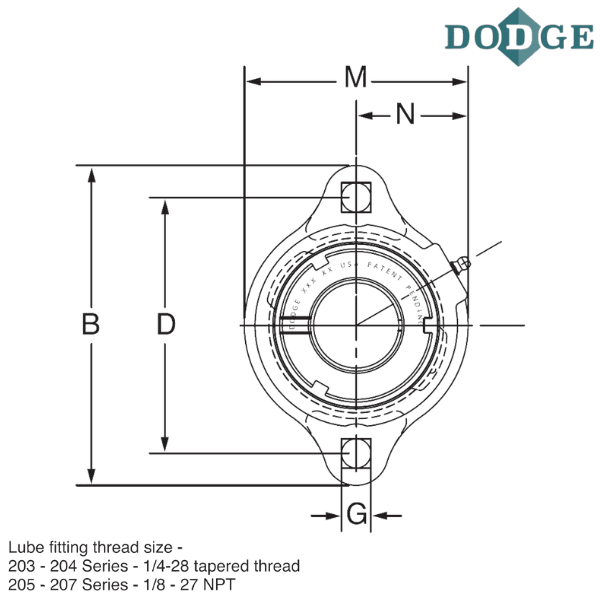

Length Through Bore (A) inch - 1.62
Overall Length (B) inch - 4.82
Thickness (C) inch - 1.63
Bolt Center to Center Length (D) inch - 3.94
G (inch) - 0.41
H (inch) - 0.5
J (inch) - 0.57
L (inch) - 2.38
Overall Width (M) inch - 3.5
N (inch) - 1.83
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
LFT - 2-bolt light duty flange
GT - Wide inner ring, normal duty, thin wall adapter locking

** Images are for representation purposes only
