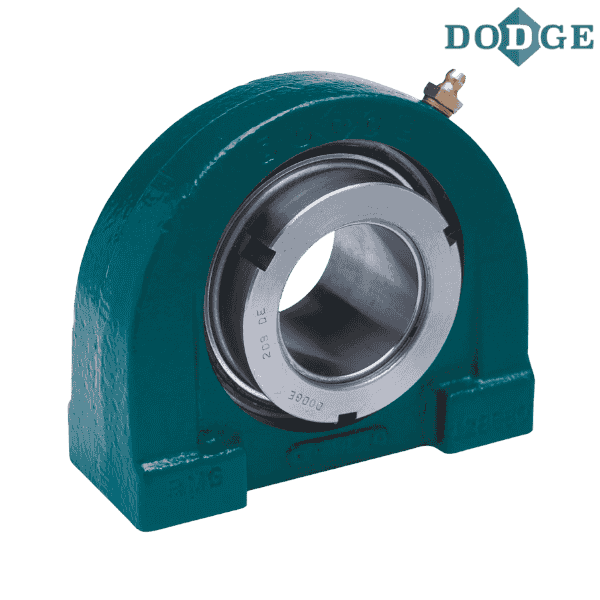

136366 DODGE - TB-GT-25M

Brand - DODGE
Item Number - 136366 DODGE - TB-GT-25M
Category - GRIP TIGHT Adapter Ball Bearings (GT Normal Duty Tapped Base Pillow Blocks)
Series - 205
Shaft Size (mm) - 25
Description - TB-GT-25M
Part Number (Unit without Adapter Sleeve and Lock Nut) - 136384
Description (Unit without Adapter Sleeve and Lock Nut) - TB-GT-05M
Part Number (Adapter Sleeve and Lock Nut Assembly) - 136554
Description (Adapter Sleeve and Lock Nut Assembly) - AN-GT-05-25M-D
Weight (kg) - 1

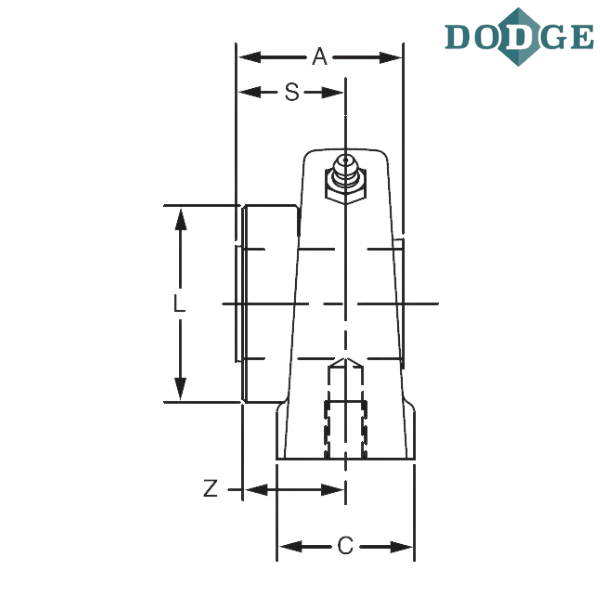

Length Through Bore (A) mm - 37.1

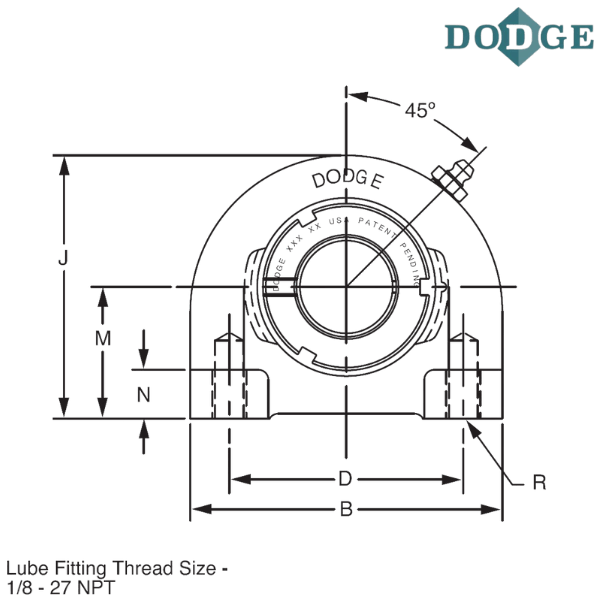

Overall Length (B) mm - 76.2
Width (C) mm - 38.1
Bolt Center to Center Length (D) mm - 50.8
Overall Height (J) mm - 71.4
L (mm) - 45.7
Base to Center Height (M) mm - 36.5
N (mm) - 12.7
UNC -Thread (R) mm - M10x1.5
S (mm) - 24.9
Z (mm) - 25.4
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
TB - Tapped base pillow block
GT - Wide inner ring, normal duty, thin wall adapter locking
M - Metric

** Images are for representation purposes only
