136368 DODGE - TB-GT-35M

Brand - DODGE
Item Number - 136368 DODGE - TB-GT-35M
Category - GRIP TIGHT Adapter Ball Bearings (GT Normal Duty Tapped Base Pillow Blocks)
Series - 207
Shaft Size (mm) - 35
Description - TB-GT-35M
Part Number (Unit without Adapter Sleeve and Lock Nut) - 136386
Description (Unit without Adapter Sleeve and Lock Nut) - TB-GT-07M
Part Number (Adapter Sleeve and Lock Nut Assembly) - 136556
Description (Adapter Sleeve and Lock Nut Assembly) - AN-GT-07-35M-D
Weight (kg) - 2.3

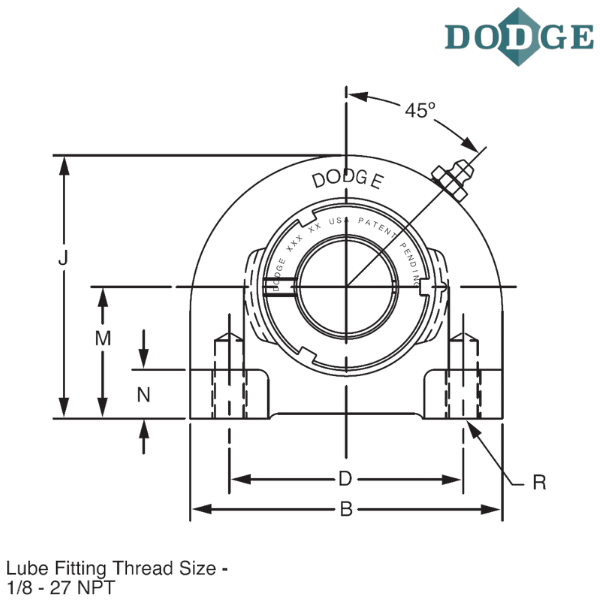

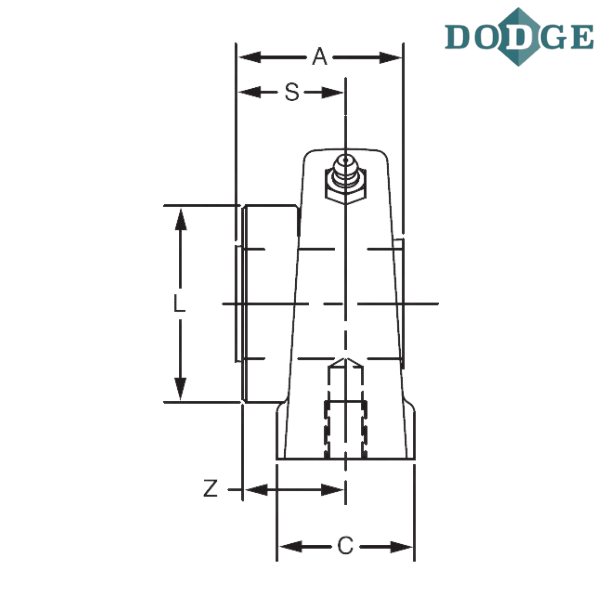

Length Through Bore (A) mm - 41.1
Overall Length (B) mm - 108
Width (C) mm - 47.8
Bolt Center to Center Length (D) mm - 82.6
Overall Height (J) mm - 95.3
L (mm) - 60.5
Base to Center Height (M) mm - 47.6
N (mm) - 19.1
UNC -Thread (R) mm - M10x1.5
S (mm) - 27.4
Z (mm) - 29
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
TB - Tapped base pillow block
GT - Wide inner ring, normal duty, thin wall adapter locking
M - Metric

** Images are for representation purposes only
