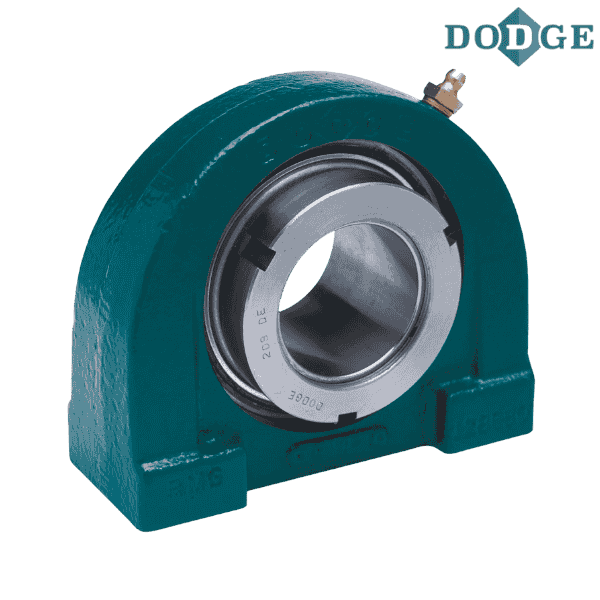

136369 DODGE - TB-GT-40M

Brand - DODGE
Item Number - 136369 DODGE - TB-GT-40M
Category - GRIP TIGHT Adapter Ball Bearings (GT Normal Duty Tapped Base Pillow Blocks)
Series - 208
Shaft Size (mm) - 40
Description - TB-GT-40M
Part Number (Unit without Adapter Sleeve and Lock Nut) - 136387
Description (Unit without Adapter Sleeve and Lock Nut) - TB-GT-08M
Part Number (Adapter Sleeve and Lock Nut Assembly) - 136593
Description (Adapter Sleeve and Lock Nut Assembly) - AN-GT-08-40M-D
Weight (kg) - 3

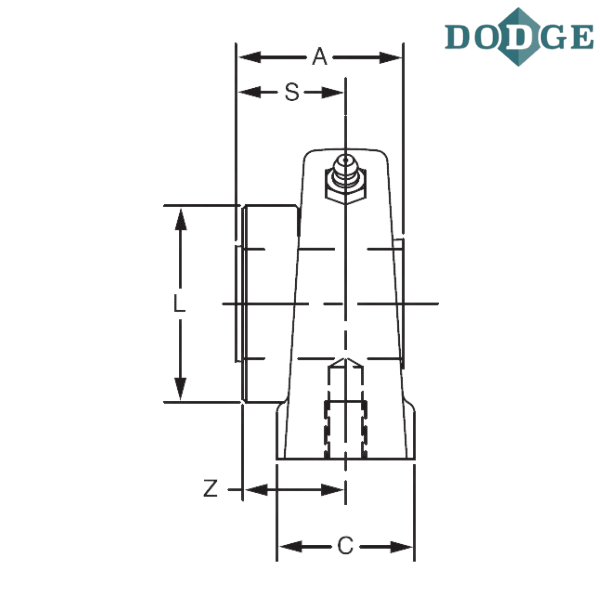

Length Through Bore (A) mm - 46.7

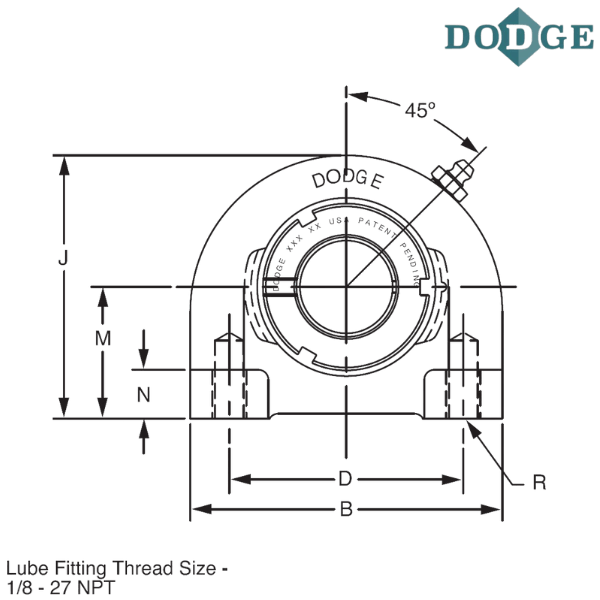

Overall Length (B) mm - 117.6
Width (C) mm - 47.8
Bolt Center to Center Length (D) mm - 88.9
Overall Height (J) mm - 100.1
L (mm) - 66.5
Base to Center Height (M) mm - 49.2
N (mm) - 19.1
UNC -Thread (R) mm - M12x1.75
S (mm) - 31.2
Z (mm) - 31.2
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
TB - Tapped base pillow block
GT - Wide inner ring, normal duty, thin wall adapter locking
M - Metric

** Images are for representation purposes only
