136370 DODGE - TB-GT-45M

Brand - DODGE
Item Number - 136370 DODGE - TB-GT-45M
Category - GRIP TIGHT Adapter Ball Bearings (GT Normal Duty Tapped Base Pillow Blocks)
Series - 209
Shaft Size (mm) - 45
Description - TB-GT-45M
Part Number (Unit without Adapter Sleeve and Lock Nut) - 136388
Description (Unit without Adapter Sleeve and Lock Nut) - TB-GT-09M
Part Number (Adapter Sleeve and Lock Nut Assembly) - 136657
Description (Adapter Sleeve and Lock Nut Assembly) - AN-GT-09-45M-D
Weight (kg) - 3.2

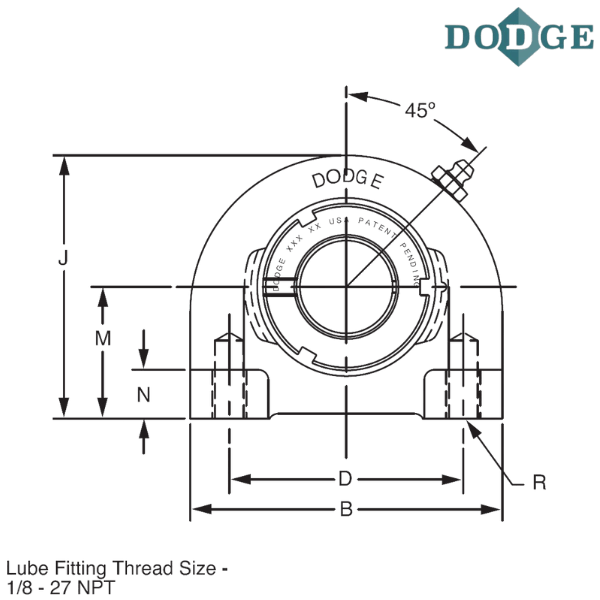

Length Through Bore (A) mm - 47
Overall Length (B) mm - 127
Width (C) mm - 50.8
Bolt Center to Center Length (D) mm - 95.3
Overall Height (J) mm - 108
L (mm) - 72.6
Base to Center Height (M) mm - 54
N (mm) - 19.1
UNC -Thread (R) mm - M12x1.75
S (mm) - 31.2
Z (mm) - 32
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
TB - Tapped base pillow block
GT - Wide inner ring, normal duty, thin wall adapter locking
M - Metric

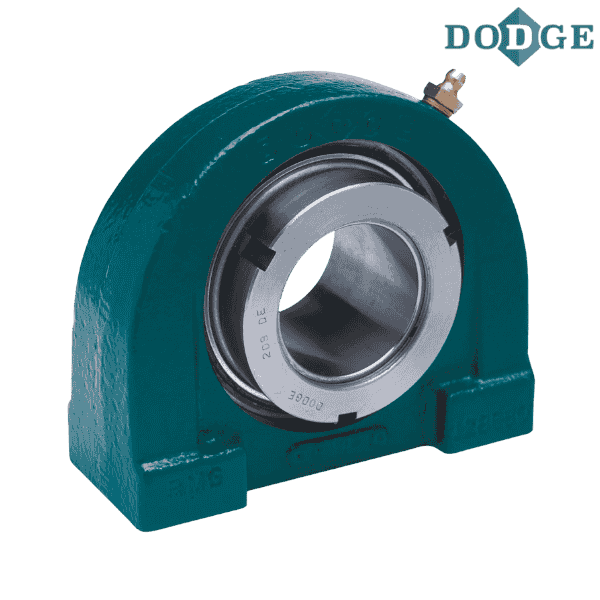

** Images are for representation purposes only
