136371 DODGE - TB-GT-50M

Brand - DODGE
Item Number - 136371 DODGE - TB-GT-50M
Category - GRIP TIGHT Adapter Ball Bearings (GT Normal Duty Tapped Base Pillow Blocks)
Series - 210
Shaft Size (mm) - 50
Description - TB-GT-50M
Part Number (Unit without Adapter Sleeve and Lock Nut) - 136389
Description (Unit without Adapter Sleeve and Lock Nut) - TB-GT-10M
Part Number (Adapter Sleeve and Lock Nut Assembly) - 136558
Description (Adapter Sleeve and Lock Nut Assembly) - AN-GT-10-50M-D
Weight (kg) - 4.2

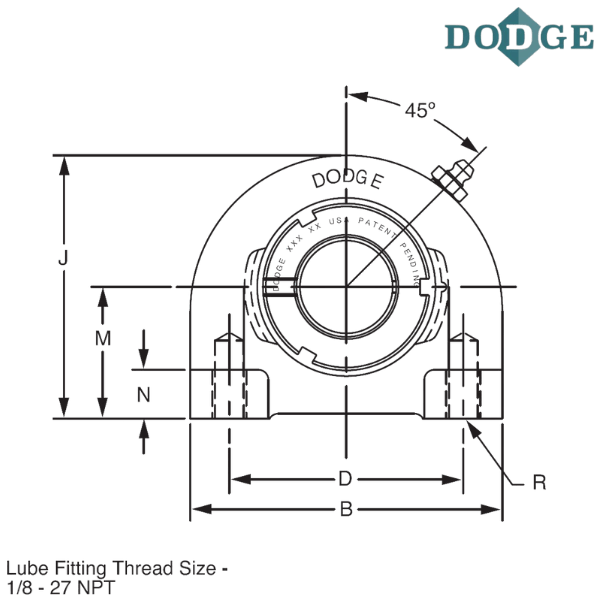

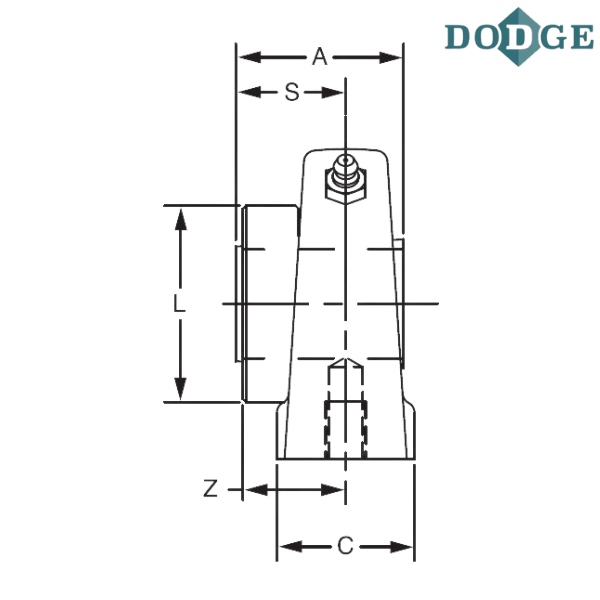

Length Through Bore (A) mm - 47.2
Overall Length (B) mm - 139.7
Width (C) mm - 50.8
Bolt Center to Center Length (D) mm - 101.6
Overall Height (J) mm - 117.6
L (mm) - 79.5
Base to Center Height (M) mm - 57.2
N (mm) - 22.4
UNC -Thread (R) mm - M16x2
S (mm) - 31.2
Z (mm) - 32
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
TB - Tapped base pillow block
GT - Wide inner ring, normal duty, thin wall adapter locking
M - Metric

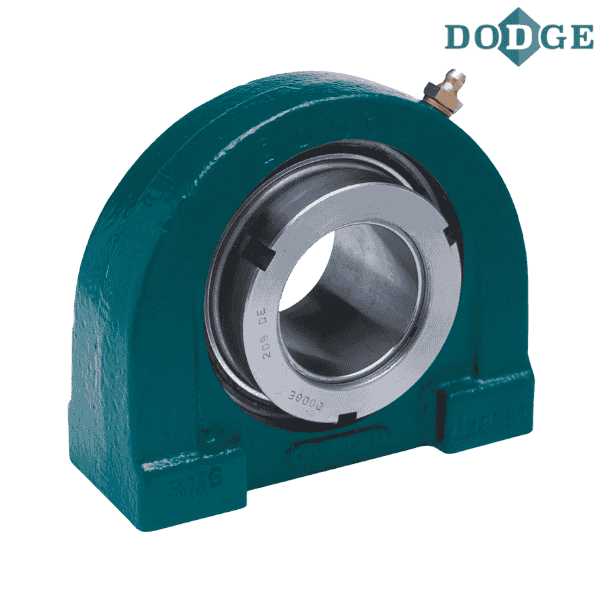

** Images are for representation purposes only
