Description
Brand - DODGE

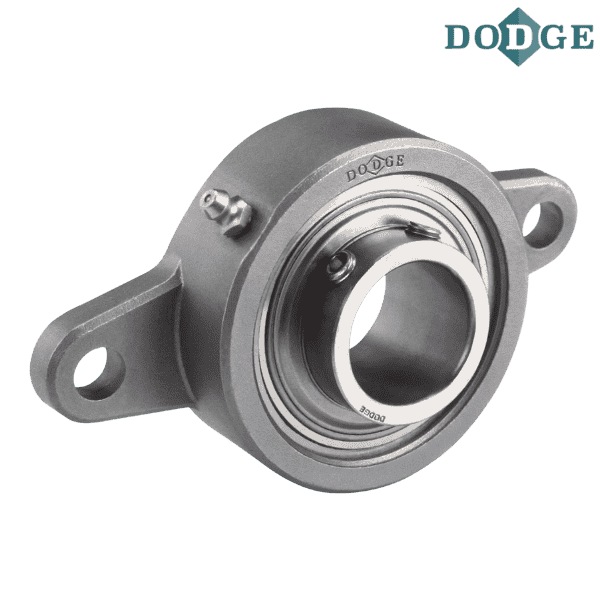

Item Number - 136799 DODGE - F2B-SCEZ-108-SHSS
Category - Ultra Kleen Mounted Bearings With Stainless Steel Insert (SCEZ PSS Normal Duty Polymer Housed 2-Bolt Flange Bearings)
Series - 208
Shaft Size (inch) - 1.5
Description - F2B-SCEZ-108-SHSS
Weight (lbs) - 3.4

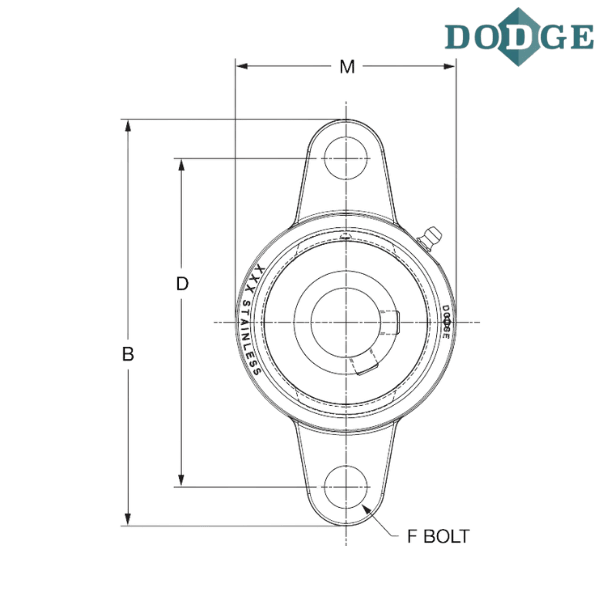

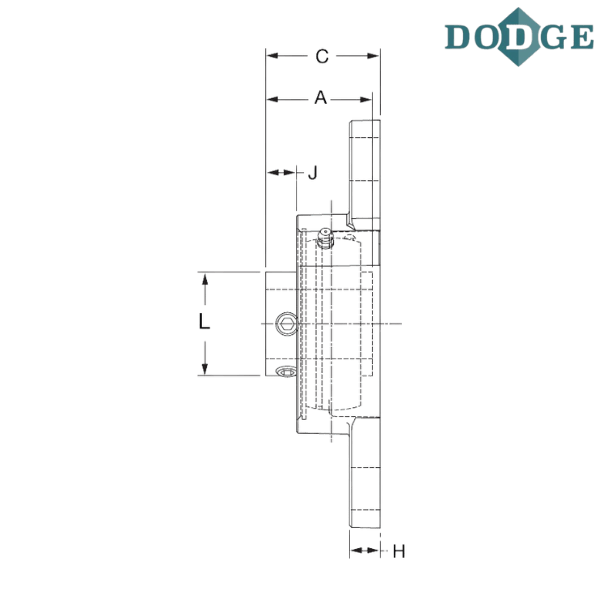

Length Through Bore (A) inch - 1.94
Overall Length (B) inch - 6.71
Thickness (C) inch - 1.97
Bolt Center to Center Length (D) inch - 5.65
F-Bolt Diameter (inch) - 0.5
H (inch) - 0.42
J (inch) - 0.63
L (inch) - 2.05
Overall Width (M) inch - 3.84
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request
Notes :
F2B - 29 bolt flange
SC - Wide inner ring, normal duty, 65° setscrew locking
EZ - E-Z KLEEN/ULTRA KLEEN (used with polymer or stainless steel housed units)
SH - Stainless Steel Housing
SS - Stainless Steel Insert
** Images are for representation purposes only
