Brand - TIMKEN
Item Number - 13686/13620 TIMKEN
Also Known As - 13686 - 13620
Category - Single Row Tapered Roller Bearing (TS Type)
Bore Diameter (d) mm - 38.1
Bore Diameter (d) inch - 1.5
Outer Diameter (D) mm - 69.012
Outer Diameter (D) inch - 2.717
Width (T) mm - 26.195
Width (T) inch - 1.0313
Dynamic Load Rating (C1) N - 67200
Dynamic Load Rating (C1) lbf - 15100
Factor (e) - 0.4
Factor (Y) - 1.49
Basic Dynamic Radial Load Rating (90 Million Revolution) (C90) N - 17400
Basic Dynamic Radial Load Rating (90 Million Revolution) (C90) lbf - 3920
Basic Dynamic Thrust Load Rating (90 Million Revolution) (Ca90) N - 12000
Basic Dynamic Thrust Load Rating (90 Million Revolution) (Ca90) lbf - 2700
Ratio of Basic Dynamic Radial Load Rating to Basic Dynamic Thrust Rating (K) - 1.45
Basic Static Radial Load Rating (C0) N - 67900
Basic Static Radial Load Rating (C0) lbf - 15300
Cone Width (B) mm - 26.195
Cone Width (B) inch - 1.0313
Cup Width (C) mm - 15.083
Cup Width (C) inch - 0.5938
Effective Center Location (a) mm - -10.2
Effective Center Location (a) inch - -0.4
Maximum Shaft Fillet Radius (R) mm - 1.5
Maximum Shaft Fillet Radius (R) inch - 0.06
Cone Frontface Backing Diameter (da) mm - 43
Cone Frontface Backing Diameter (da) inch - 1.69
Cone Backface Backing Diameter (db) mm - 45.5
Cone Backface Backing Diameter (db) inch - 1.79
Max Housing Fillet Radius (r) mm - 0.8
Max Housing Fillet Radius (r) inch - 0.03
Cup Frontface Backing Diameter (Da) mm - 65
Cup Frontface Backing Diameter (Da) inch - 2.56
Cup Backface Backing Diameter (Db) mm - 62
Cup Backface Backing Diameter (Db) inch - 2.44
Cage-Cone Backface Clearance (Aa) mm - 8
Cage-Cone Backface Clearance (Aa) inch - 0.31
Cage-Cone Frontface Clearance (Ab) mm - 0.7
Cage-Cone Frontface Clearance (Ab) inch - 0.03
Geometry Factor (G1) - 20.7
Geometry Factor (G2) - 12.2
Geometry Factor (Cg) - 0.0713
Weight (kg) - 0.35
Weight (lbs) - 0.77
Inner Part Number - 13686
Outer Part Number - 13620
TS - Single Row Tapered Roller Bearing

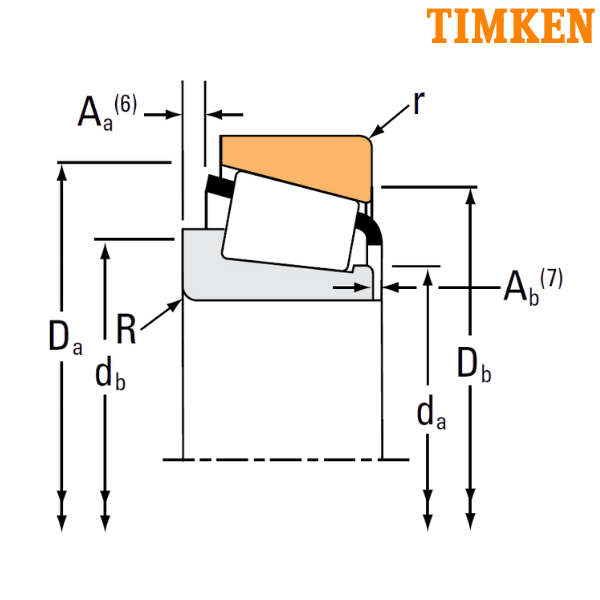

** Images are for representation purposes only
