Description
Brand - DODGE
Item Number - 136869 DODGE - FB-SCEZ-30M-SHSS

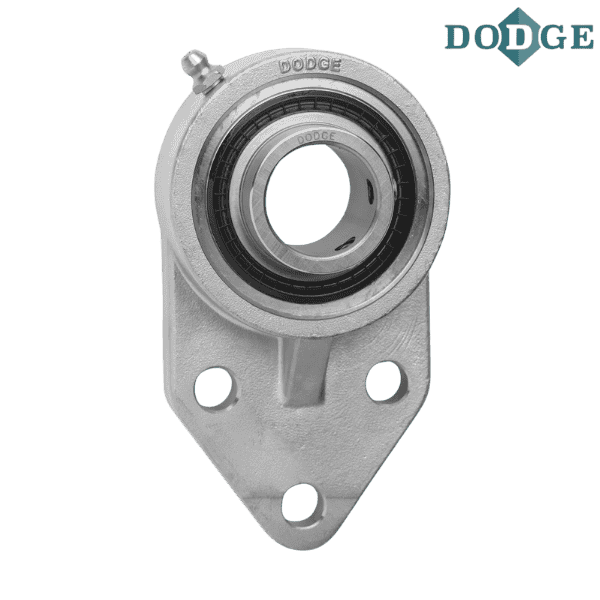

Category - Ultra Kleen Mounted Bearings (SCEZ SHSS Normal Duty Stainless Steel Housed Flange Bracket Bearing)
Series - 206
Shaft Size (mm) - 30
Description - FB-SCEZ-30M-SHSS
Weight (kg) - 0.89

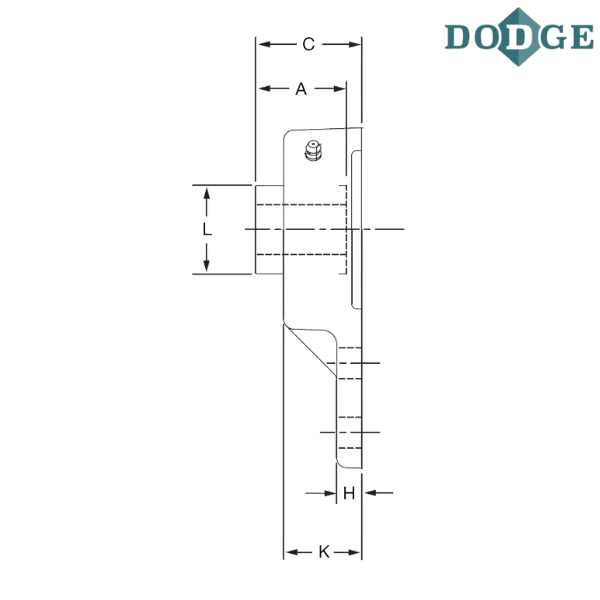

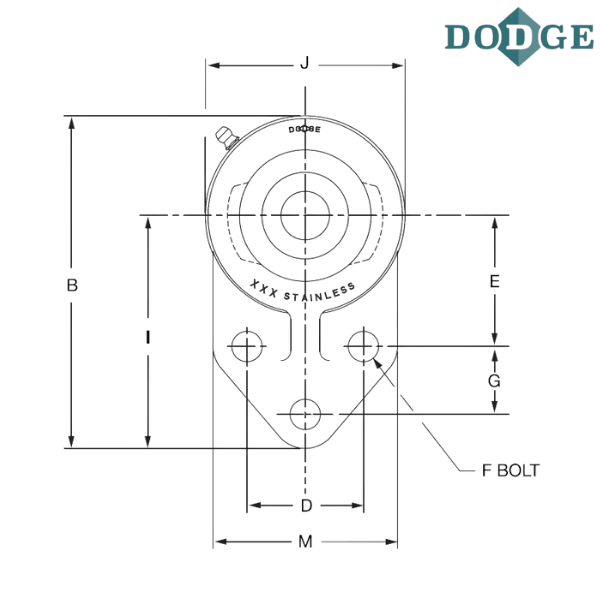

Length Through Bore (A) mm - 38.6
Overall Length (B) mm - 134.9
Thickness (C) mm - 40.4
Bolt Center to Center Length (D) mm - 47.8
E (mm) - 52.3
F-Bolt Diameter - M10
G (mm) - 31.8
H (mm) - 9.7
I (mm) - 95.3
Overall Width (J) mm - 79.2
K (mm) - 29
L (mm) - 39.9
M (mm) - 69.9
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request
Notes :
FB - Flanged bracket
SC - Wide inner ring, normal duty, 65° setscrew locking
EZ - E-Z KLEEN/ULTRA KLEEN (used with polymer or stainless steel housed units)
M - Metric
SH - Stainless Steel Housing
SS - Stainless Steel Insert
