Description
Brand - DODGE

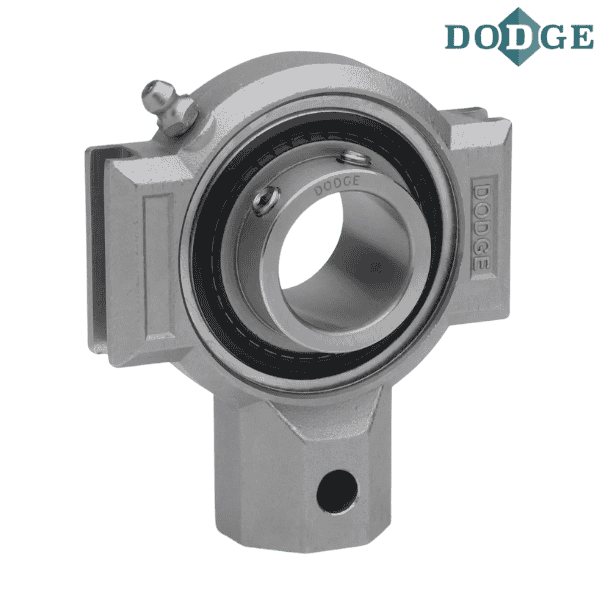

Item Number - 136976 DODGE - NSTU-SCEZ-30M-SHCR
Category - E-Z Kleen Mounted Bearings (SCEZ SHCR Normal Duty Stainless Steel Narrow Slot Take-Up Bearings)
Series - 206
Shaft Size (mm) - 30
Description - NSTU-SCEZ-30M-SHCR
Weight (kg) - 1.14
Take-Up Frame Number Reference - NS308

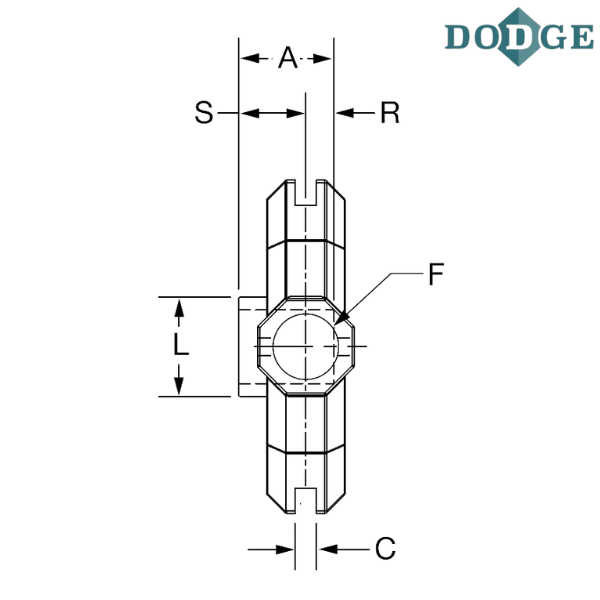

Length Through Bore (A) mm - 38.6

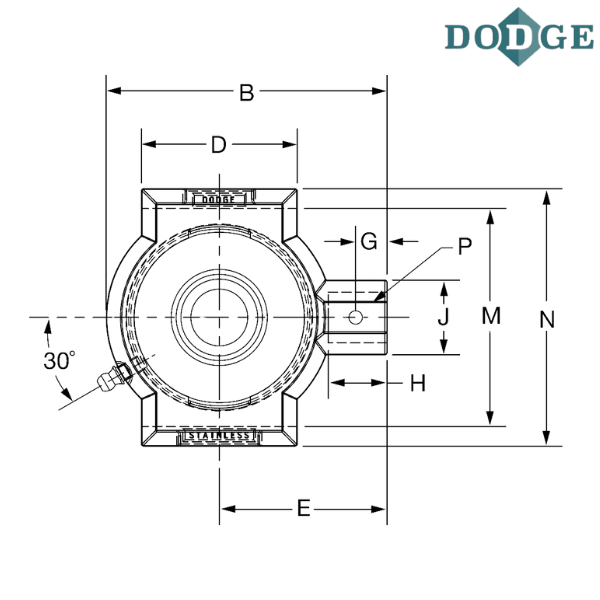

Overall Length (B) mm - 114.3
C (mm) - 6.73
D (mm) - 63.5
E (mm) - 68.3
F (Screw Diameter) mm - 19.1
G (mm) - 12.7
H (mm) - 23.9
J (mm) - 30.5
L (mm) - 39.9
M (mm) - 89.15/88.39
Overall Width (N) mm - 104.9
Pin Diameter (P) mm - 8.1
R (mm) - 14.7
S (mm) - 23.9
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request
Notes :
NSTU - Narrow slot take-up
SC - Wide inner ring, normal duty, 65° setscrew locking
EZ - E-Z KLEEN/ULTRA KLEEN (used with polymer or stainless steel housed units)
M - Metric
SH - Stainless Steel Housing
CR - Corrosion resistant insert
** Images are for representation purposes only
