Description
Brand - KAYDON
Item Number - 16265001 KAYDON
Category - Slewing Ring Bearing (DT Series with External Gear)

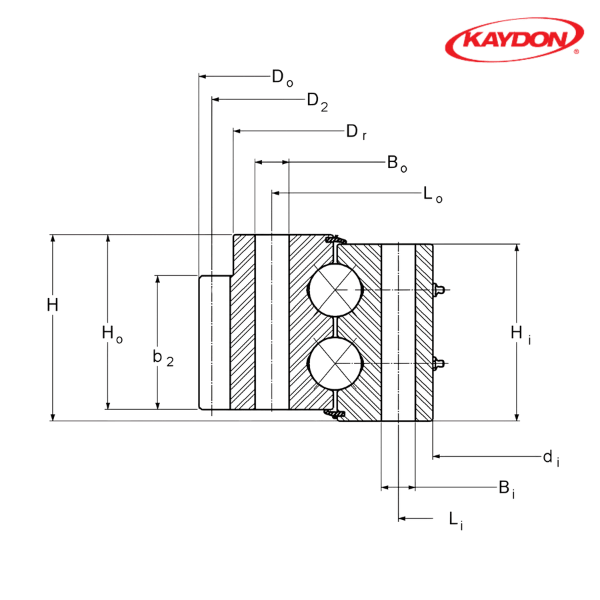

Outline Dimension (Do) inch - 56.24
Outline Dimension (di) inch - 41.37
Outline Dimension (H) inch - 7.125
Outline Dimension (Ho) inch - 6.688
Outline Dimension (Hi) inch - 6.688
Outline Dimension (Dr) inch - 54.675
Weight (G) kg - 784.71416
Mounting Holes Outer Ring (Lo) inch - 52
Mounting Holes Outer Ring (no) - 30
Mounting Holes Outer Ring (Bo) inch - 1.313
Mounting Holes Inner Ring (Li) inch - 44
Mounting Holes Inner Ring (ni) - 30
Mounting Holes Inner Ring (Bi) inch - 1.313
Gear Data Tooth Form - SD
Gear Data (D2) inch - 55.6
Gear Data (Pd) - 2.5
Gear Data (z2) - 139
Gear Data (b2) inch - 4
Maximum Gear Tooth Load (Fz) lbs - 30480
Moment Rating (Crm) ft-lbs - 2132100

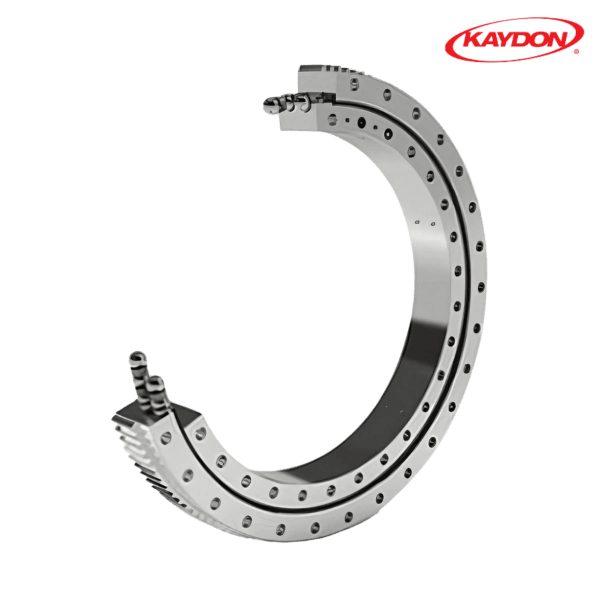

** Images are for representation purposes only
