16267001 KAYDON


Country Of Origin: USA
Price:
Sale price₹ 100.00 Regular price₹ 200.00

Download data sheet

Description

Brand - KAYDON
Item Number - 16267001 KAYDON
Category - Slewing Ring Bearing (DT Series with External Gear)

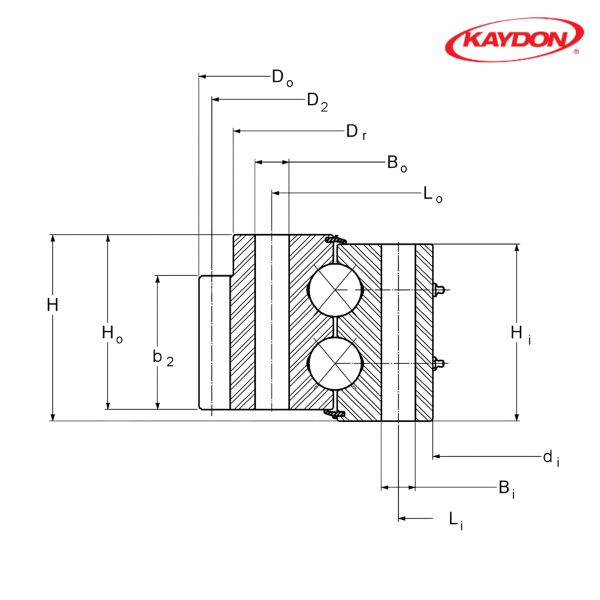

Outline Dimension (Do) inch - 75.394
Outline Dimension (di) inch - 58.5
Outline Dimension (H) inch - 6.11
Outline Dimension (Ho) inch - 5.75
Outline Dimension (Hi) inch - 5.75
Outline Dimension (Dr) inch - 73.307
Weight (G) kg - 1111.3004
Mounting Holes Outer Ring (Lo) inch - 70.5
Mounting Holes Outer Ring (no) - 48
Mounting Holes Outer Ring (Bo) inch - 1.313
Mounting Holes Inner Ring (Li) inch - 61.366
Mounting Holes Inner Ring (ni) - 48
Mounting Holes Inner Ring (Bi) inch - 1.313
Gear Data Tooth Form - FD
Gear Data (D2) inch - 74.016
Gear Data (Pd) - -10
Gear Data (z2) - 188
Gear Data (x2) - 0.8
Gear Data (b2) inch - 4.13
Maximum Gear Tooth Load (Fz) lbs - 31400
Moment Rating (Crm) ft-lbs - 3335700

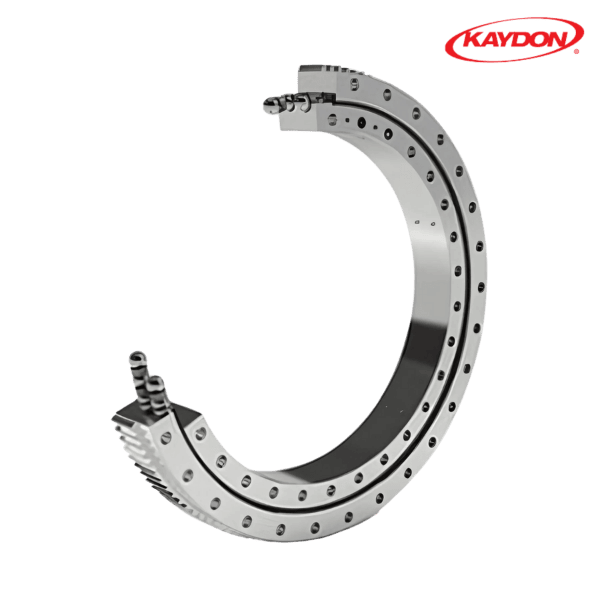

** Images are for representation purposes only
