16275001 KAYDON


Country Of Origin: USA
Price:
Sale price₹ 100.00 Regular price₹ 200.00

Download data sheet

Description

Brand - KAYDON
Item Number - 16275001 KAYDON
Category - Slewing Ring Bearing (DT Series with Internal Gear)

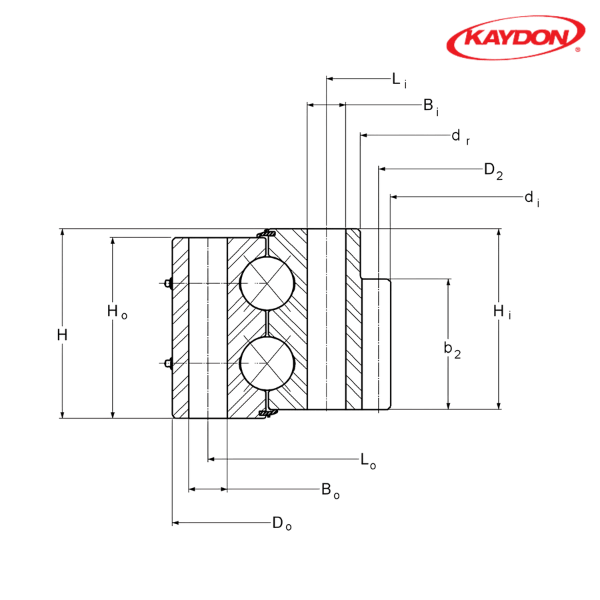

Outline Dimension (Do) inch - 66
Outline Dimension (di) inch - 47.6
Outline Dimension (H) inch - 8
Outline Dimension (Ho) inch - 7.625
Outline Dimension (Hi) inch - 7.625
Outline Dimension (dr) inch - 50.125
Weight (G) kg - 1279.12944
Mounting Holes Outer Ring (Lo) inch - 63
Mounting Holes Outer Ring (no) - 42
Mounting Holes Outer Ring (Bo) inch - 1.625
Mounting Holes Inner Ring (Li) inch - 53
Mounting Holes Inner Ring (ni) - 45
Mounting Holes Inner Ring (Bi) inch - 1.625
Gear Data Tooth Form - SD
Gear Data (D2) inch - 48.667
Gear Data (Pd) - 1.5
Gear Data (z2) - 73
Gear Data (b2) inch - 5.5
Maximum Gear Tooth Load (Fz) lbs - 78680
Moment Rating (Crm) ft-lbs - 3921100

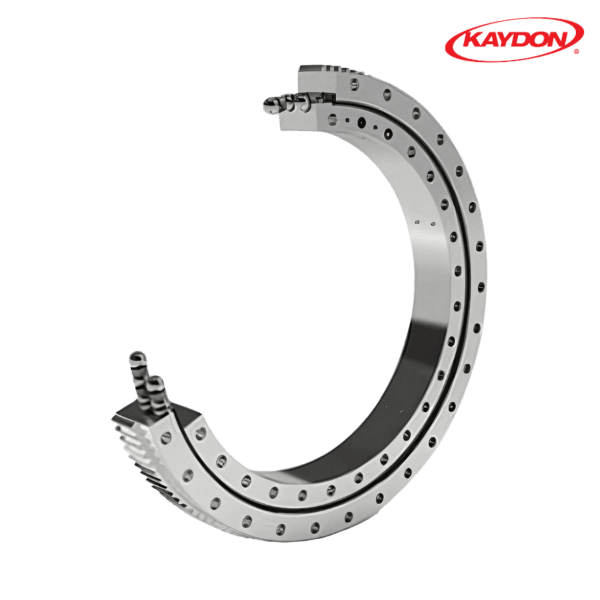

** Images are for representation purposes only
