Description
Brand - KAYDON
Item Number - 16276001 KAYDON
Category - Slewing Ring Bearing (DT Series with Internal Gear)

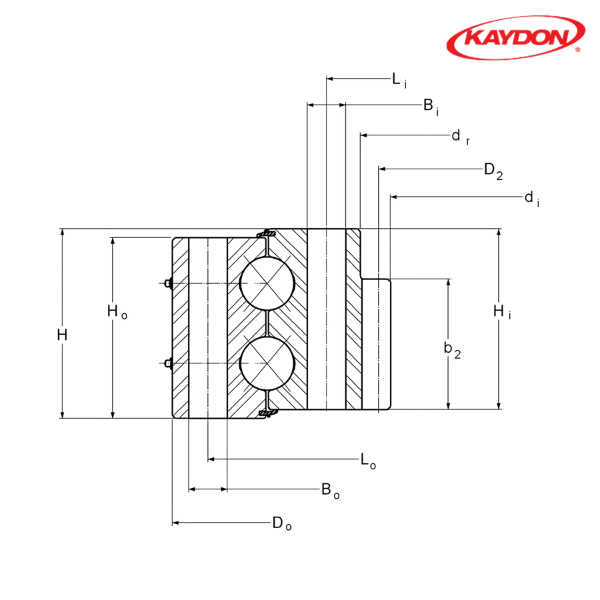

Outline Dimension (Do) inch - 70.5
Outline Dimension (di) inch - 50.2
Outline Dimension (H) inch - 8.625
Outline Dimension (Ho) inch - 8.312
Outline Dimension (Hi) inch - 8.312
Outline Dimension (dr) inch - 52.125
Weight (G) kg - 1678.2904
Mounting Holes Outer Ring (Lo) inch - 67.625
Mounting Holes Outer Ring (no) - 36
Mounting Holes Outer Ring (Bo) inch - 1 1/2-6
Mounting Holes Inner Ring (Li) inch - 55
Mounting Holes Inner Ring (ni) - 40
Mounting Holes Inner Ring (Bi) inch - 1.625
Gear Data Tooth Form - SD
Gear Data (D2) inch - 51
Gear Data (Pd) - 2
Gear Data (z2) - 102
Gear Data (b2) inch - 5
Maximum Gear Tooth Load (Fz) lbs - 56400
Moment Rating (Crm) ft-lbs - 4863400

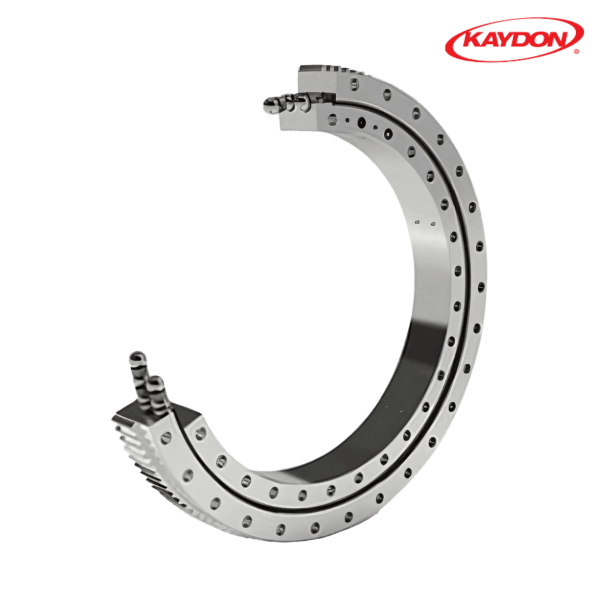

** Images are for representation purposes only
