16281001 KAYDON


Country Of Origin: USA
Price:
Sale price₹ 100.00 Regular price₹ 200.00

Download data sheet

Description

Brand - KAYDON
Item Number - 16281001 KAYDON
Category - Slewing Ring Bearing (DT Series with Internal Gear)

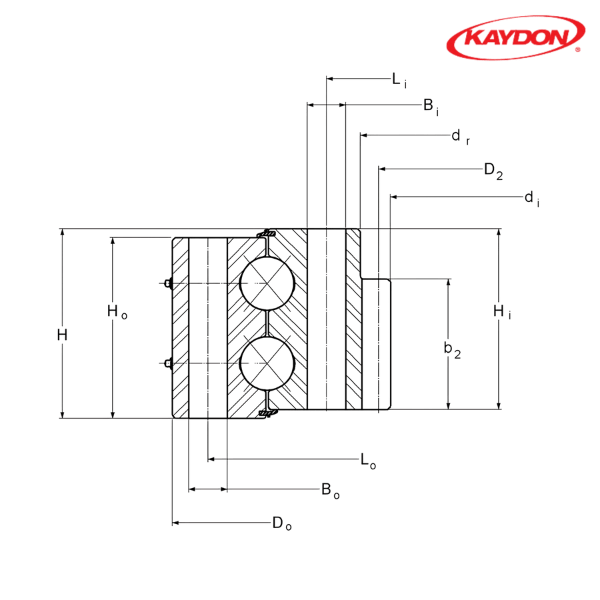

Outline Dimension (Do) inch - 141
Outline Dimension (di) inch - 114.941
Outline Dimension (H) inch - 11.18
Outline Dimension (Ho) inch - 10
Outline Dimension (Hi) inch - 10.43
Outline Dimension (dr) inch - 120.71
Weight (G) kg - 6735.8412
Mounting Holes Outer Ring (Lo) inch - 133.661
Mounting Holes Outer Ring (no) - 90
Mounting Holes Outer Ring (Bo) inch - 1.625
Mounting Holes Inner Ring (Li) inch - 124.252
Mounting Holes Inner Ring (ni) - 90
Mounting Holes Inner Ring (Bi) inch - 1.625
Gear Data Tooth Form - FD
Gear Data (D2) inch - 116.221
Gear Data (Pd) - -18
Gear Data (z2) - 165
Gear Data (x2) - -0.5
Gear Data (b2) inch - 10
Maximum Gear Tooth Load (Fz) lbs - 155340
Moment Rating (Crm) ft-lbs - 12625000

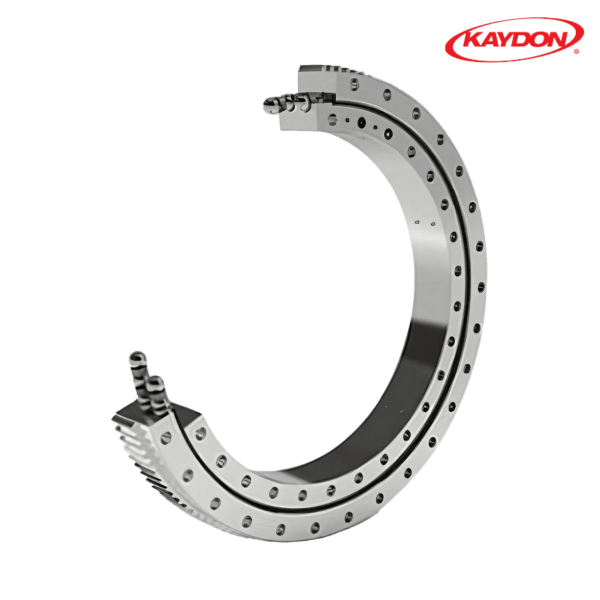

** Images are for representation purposes only
