16290001 KAYDON


Country Of Origin: USA
Price:
Sale price₹ 100.00 Regular price₹ 200.00

Download data sheet

Description

Brand - KAYDON
Item Number - 16290001 KAYDON
Category - Slewing Ring Bearing (XT Series with No Gear)

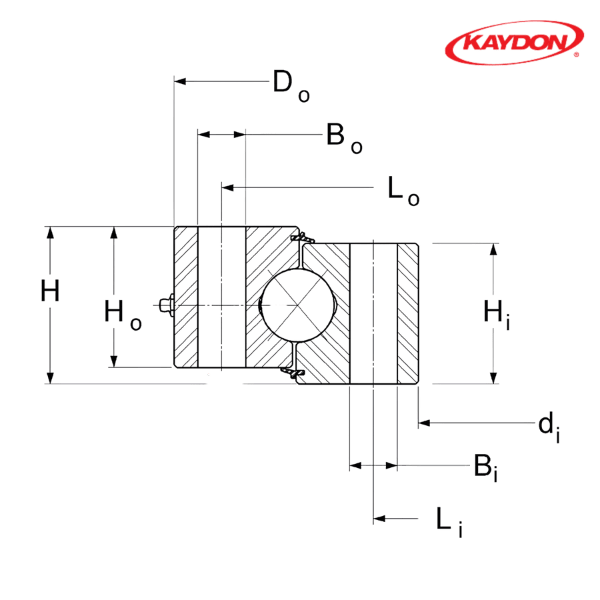

Outline Dimension (Do) inch - 129
Outline Dimension (di) inch - 113
Outline Dimension (H) inch - 5.5
Outline Dimension (Ho) inch - 5
Outline Dimension (Hi) inch - 5
Weight (G) kg - 1791.6884
Mounting Holes Outer Ring (Lo) inch - 125.5
Mounting Holes Outer Ring (no) - 72
Mounting Holes Outer Ring (Bo) inch - 1.063
Mounting Holes Inner Ring (Li) inch - 116.5
Mounting Holes Inner Ring (ni) - 72
Mounting Holes Inner Ring (Bi) inch - 1.063
Moment Rating (Crm) ft-lbs - 1337000

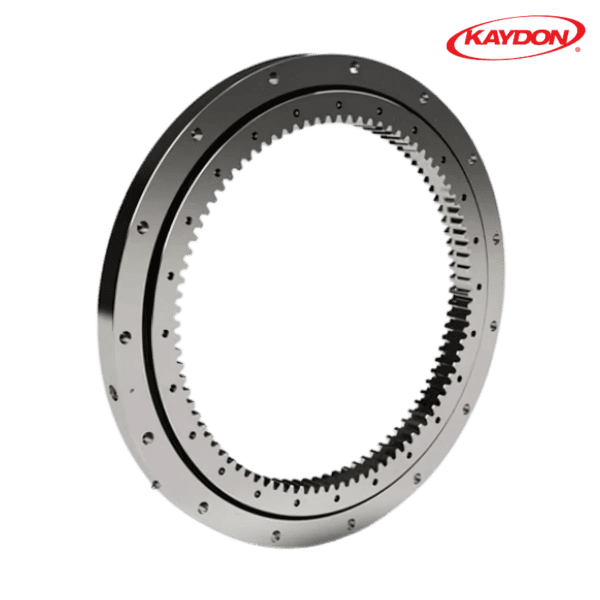

** Images are for representation purposes only
