16317001 KAYDON


Country Of Origin: USA
Price:
Sale price₹ 100.00 Regular price₹ 200.00

Download data sheet

Description

Brand - KAYDON
Item Number - 16317001 KAYDON
Category - Slewing Ring Bearing (XT Series with External Gear)

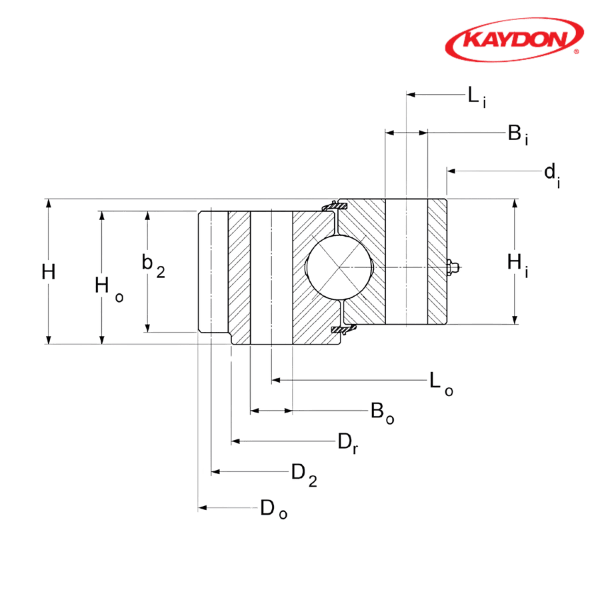

Outline Dimension (Do) inch - 218.268
Outline Dimension (di) inch - 197.244
Outline Dimension (H) inch - 5.512
Outline Dimension (Ho) inch - 5.039
Outline Dimension (Hi) inch - 5.039
Weight (G) kg - 3946.2504
Mounting Holes Outer Ring (Lo) inch - 212.598
Mounting Holes Outer Ring (no) - 90
Mounting Holes Outer Ring (Bo) inch - 1.26
Mounting Holes Inner Ring (Li) inch - 200.787
Mounting Holes Inner Ring (ni) - 90
Mounting Holes Inner Ring (Bi) inch - 1.26
Gear Data Tooth Form - FD
Gear Data (D2) inch - 217.323
Gear Data (Pd) - -12
Gear Data (z2) - 460
Gear Data (b2) inch - 3.78
Maximum Gear Tooth Load (Fz) lbs - 31100
Moment Rating (Crm) ft-lbs - 3190000

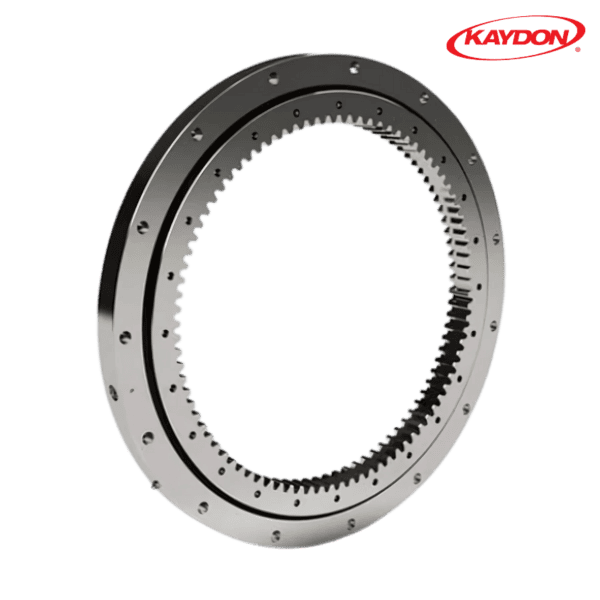

** Images are for representation purposes only
