163256 DODGE - WSTU-GT-70M

Brand - DODGE
Item Number - 163256 DODGE - WSTU-GT-70M
Category - GRIP TIGHT Adapter Ball Bearings (GT Normal Duty Wide Slot Take-Up Bearings)
Series - 214
Shaft Size (mm) - 70
Description - WSTU-GT-70M
Part Number (Unit without Adapter Sleeve and Lock Nut) - 136228
Description (Unit without Adapter Sleeve and Lock Nut) - WSTU-GT-14
Part Number (Adapter Sleeve and Lock Nut Assembly) - 136560
Description (Adapter Sleeve and Lock Nut Assembly) - AN-GT-14-70M-D
Weight (kg) - 8.2
Take- Up Frame Size - WS515

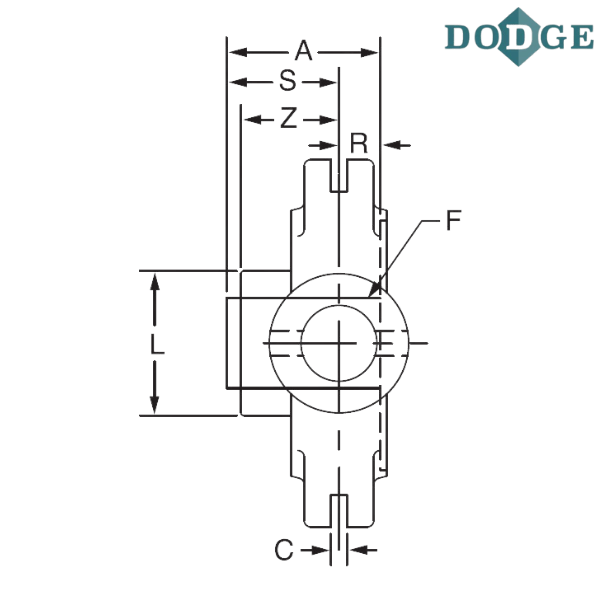

Length Through Bore (A) mm - 60.7

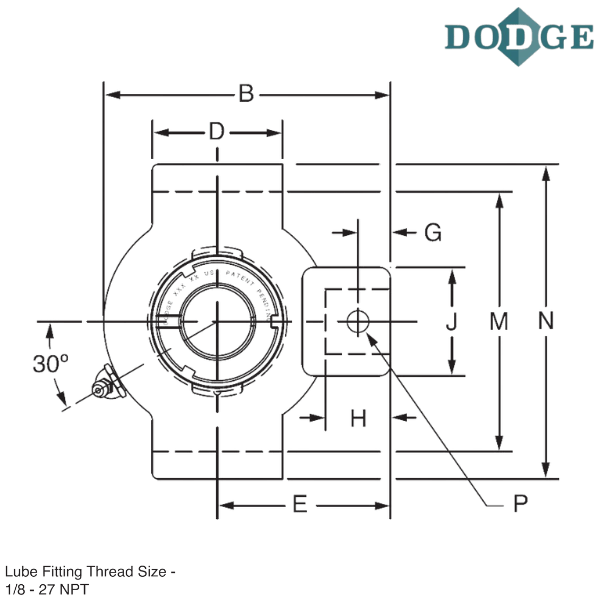

Overall Length (B) mm - 217.4
C (mm) - 27
D (mm) - 120.7
E (mm) - 136.7
F (Screw Diameter) mm - 38.1
G (mm) - 20.6
H (mm) - 31.8
J (mm) - 111.3
K (mm) - 69.9
L (mm) - 101.6
M (mm) - 150.44/151.21
Overall Width (N) mm - 166.6
R (mm) - 21.3
S (mm) - 39.4
Thickness (T) mm - 69.9
Z (mm) - 40.1
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
WSTU - Wide slot take-up
GT - Wide inner ring, normal duty, thin wall adapter locking
M - Metric

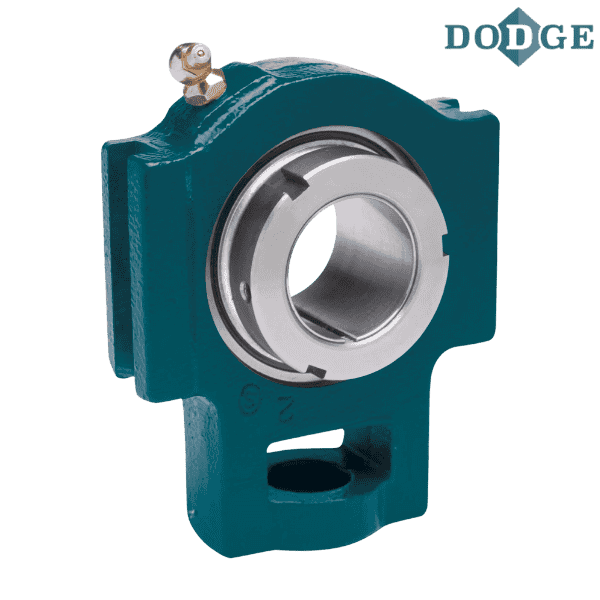

** Images are for representation purposes only
