Description
Brand - FAG
Item Number - 20332-MB FAG
Category - Barrel Roller Bearings
Weight (Kg) - 31.7
Inner Diameter (d) mm - 160
Outer Diameter (D) mm - 340
Inner Width (B) mm - 68
Minimum Chamfer Dimension (r) mm - 4
Shoulder Diameter Outer Ring (D1) mm - 293.6
Minimum Diameter of Shaft Shoulder (da) mm - 177
Maximum Diameter of Housing Shoulder (Da) mm - 323
Maximum Fillet Radius of Shaft (ra) mm - 3
Basic Dynamic Load Rating (Cr) kN - 800
Basic Static Load Rating (C0r) kN - 1060
Fatigue Limit Load (Cur) kN - 82
Limiting Speed (nG) rpm - 1000

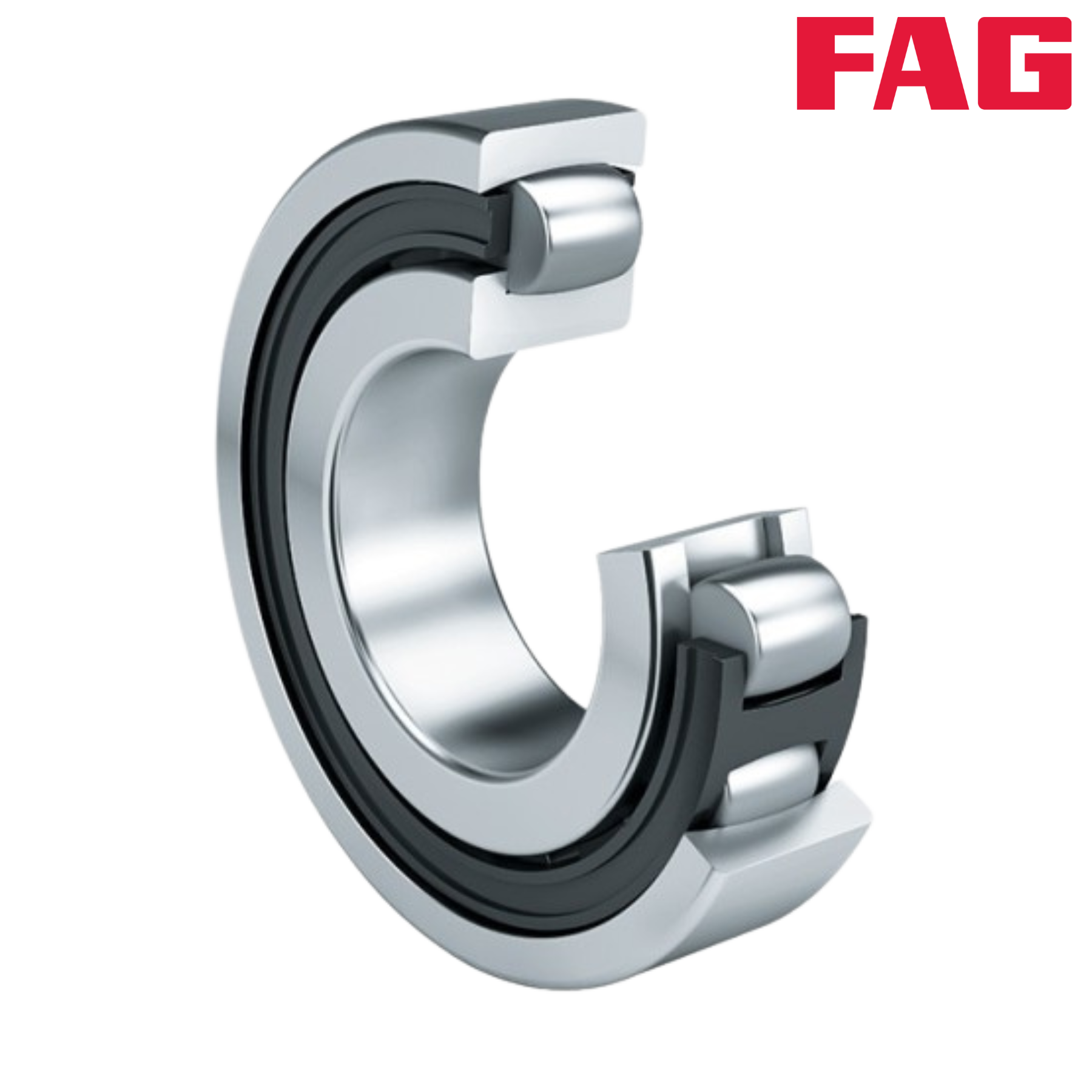

** Image is for representation purposes only
