Description
Brand - GAMET

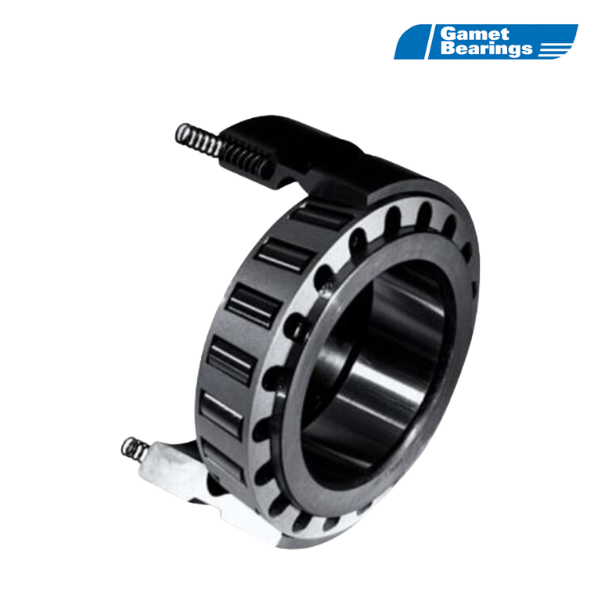

Part Number - 206190X/206290P GAMET
Category - Super Precision Tapered Roller Bearing
Size (mm) - 190.5x290x105
Bore Diameter (mm) - 190.5
Outer Diameter (mm) : 290
Width (mm) - 105

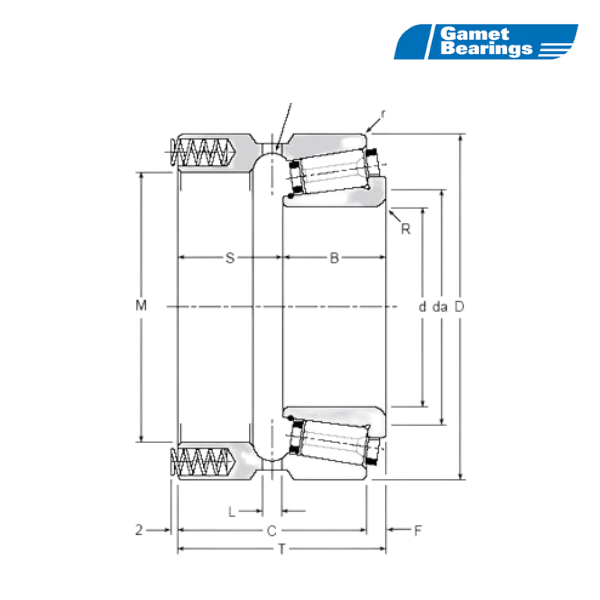

d - 190.5 mm
D - 290 mm
T - 105 mm
B - 52 mm
C - 96 mm
r - 1 mm
F - 9 mm
L - 12 mm
M - 256 mm
R - 3.5 mm
S - 53 mm
da - 238 mm
Weight - 14.2 Kg
Limiting speed - 2200 r/min
