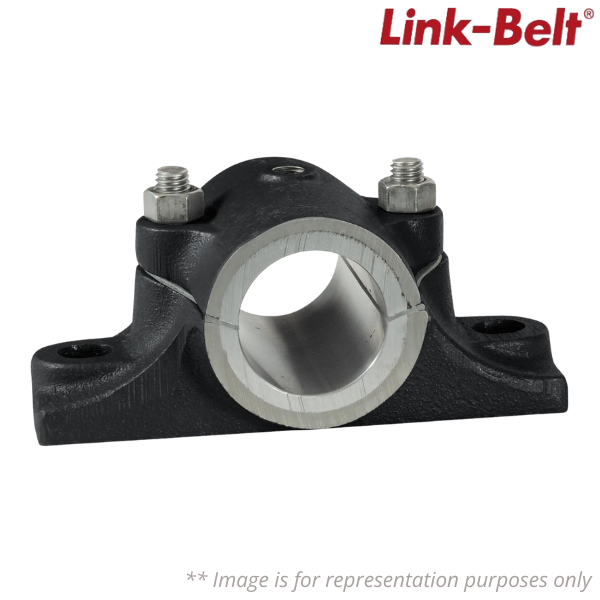

21232T4 Link-Belt

Brand - Link-Belt
Item Number - 21232T4 Link-Belt
Category - Pillow Blocks Sleeve Bearing
UPC - 793699094947
Material - 10429603
Model - 21200
Bore Size (in) - 2 in
Housing Coating - POWDER COATED
Housing Material - Cast Iron
Housing Style - Pillow Block
Housing Type - Pillow Block, Two Bolt, Split Angle
Sleeve Material - Cast Iron
Base to Centerline Height (in) - 1 3/4 in
Bearing Brand - LINK-BELT RIGID SLEEVE
Bearing Type - CAST IRON SLEEVE BRG
Bore Length (in) - 4 in
Distance Between Bolt Holes (in) - 6 in
Grease Fitting Size - 1/4 NPT
Lubrication Type - NOT GREASED FROM FACTORY
Maximum Temperature (C) - 538 C
Maximum Temperature (F) - 1000 F
Mounting Bolt Hole Slot Length (in) - 13/16 in
Mounting Bolt Size (in) - 5/8 in
Mounting Pad Height (in) - 15/16 in
Mounting Pad Length (in) - 7 1/2 in
Mounting Pad Width (in) - 2 1/2 in
Weight (kg) - 3.628736
Pipe Tap Size (in) - 1/4 in
Required Distance for Cap Removal (in) - 4 7/8 in
