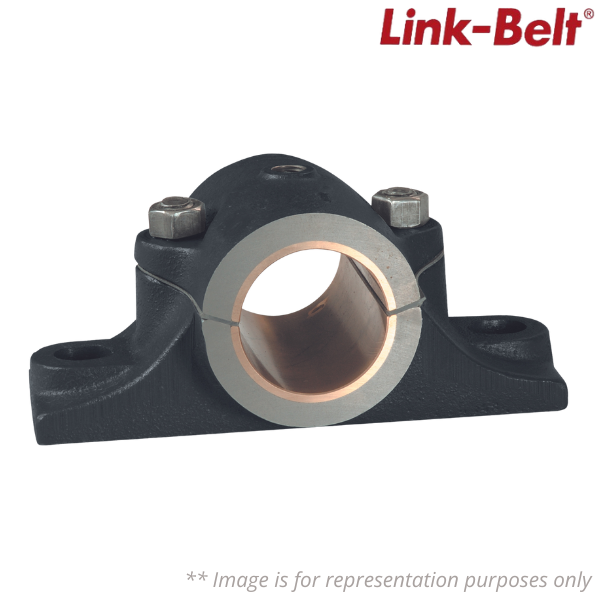

21232Z Link-Belt

Brand - Link-Belt
Item Number - 21232Z Link-Belt
Category - Pillow Blocks Sleeve Bearing
UPC - 662327192570
Material - 10400047
Model - 21200Z
Bore Size (in) - 2 in
Housing Coating - POWDER COATED
Housing Material - Cast Iron
Housing Style - Pillow Block
Housing Type - Pillow Block, Two Bolt, Split Angle
Sleeve Material - Bronze
Base to Centerline Height (in) - 1 3/4 in
Bearing Brand - LINK-BELT RIGID SLEEVE
Bearing Type - BRONZE SLEEVE BRG
Bore Length (in) - 4 in
Bushing - 285BY218
Distance Between Bolt Holes (in) - 6 in
Expansion Type - Non-Expansion Bearing (Fixed)
Grease Fitting Size - 1/4 NPT
Height - 4.5
Insert - 285BY218
Length - 8.5
Lubrication Type - NOT GREASED FROM FACTORY
Maximum Temperature (C) - 150 C
Maximum Temperature (F) - 300 F
Mounting Pad Height (in) - 15/16 in
Mounting Pad Length (in) - 7 1/2 in
Mounting Pad Width (in) - 2 1/2 in
Weight (kg) - 3.62420008
Pipe Tap Size (in) - 1/4 in
Required Distance for Cap Removal (in) - 4 7/8 in
Shims - 131Y95425 QTY 4
Unit of Dimension - IN
Volume - 0.58
Volume Unit - GLL
