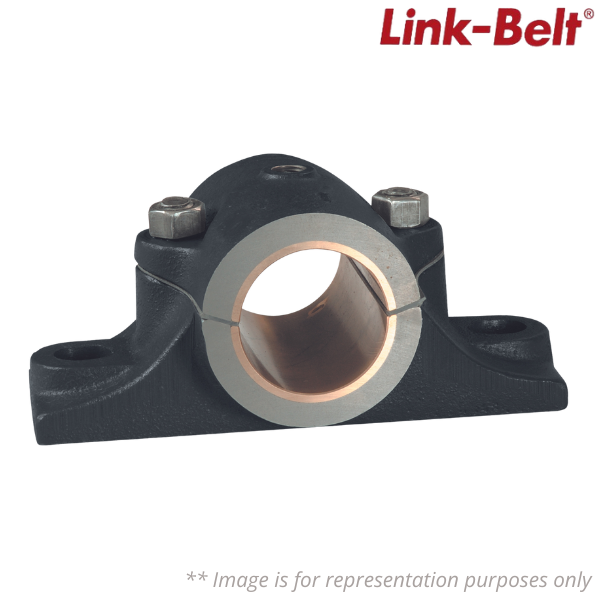

21239Z Link-Belt

Brand - Link-Belt
Item Number - 21239Z Link-Belt
Category - Pillow Blocks Sleeve Bearing
UPC - 662327192631
Material - 10400036
Model - 21200Z
Bore Size (in) - 2 7/16 in
Housing Coating - POWDER COATED
Housing Material - Cast Iron
Housing Style - Pillow Block
Housing Type - Pillow Block, Two Bolt, Split Angle
Sleeve Material - Bronze
Base to Centerline Height (in) - 2 1/8 in
Bearing Brand - LINK-BELT RIGID SLEEVE
Bearing Type - BRONZE SLEEVE BRG
Bore Length (in) - 5 in
Bushing - 285BY222
Distance Between Bolt Holes (in) - 7 in
Expansion Type - Non-Expansion Bearing (Fixed)
Grease Fitting Size - 3/8 NPT
Height - 5.5
Insert - 285BY222
Length - 9.56
Lubrication Type - NOT GREASED FROM FACTORY
Maximum Temperature (C) - 150 C
Maximum Temperature (F) - 300 F
Mounting Pad Height (in) - 1 1/8 in
Mounting Pad Length (in) - 8 7/8 in
Mounting Pad Width (in) - 3 in
Weight (kg) - 6.78573632
Pipe Tap Size (in) - 3/8 in
Required Distance for Cap Removal (in) - 5 3/4 in
Shims - 131Y95427 QTY 4
Unit of Dimension - IN
Volume - 0.911
Volume Unit - GLL
