Description
Brand - FAG
Item Number - 22214-E1A-XL-M FAG
Category - Spherical Roller Bearing
Also known as - 0190162390000 22214-E1A-M
EAN - 4026677847324
Inner (d) MM - 70
Outer (D) MM - 125
Width (B) MM - 31
Inner (d) Inch - 2.7559
Outer (D) Inch - 4.9213
Width (B) Inch - 1.2205
Weight (kg) - 1.58
Bore - C - Cylindrical Bore
Lubrication Enhancement - W33 - Lubrication Groove and 3 Holes
Seal - No Seal
Cage Type - M - Brass Cage
Radial Internal Play - Cn Normal Internal Play
Precision - Standard Precision
Heat Stabilization - No Heat Stabilization - Temperatures up to 120 °C
Vibrating Screen Execution - Non Vibrating Screen Execution
Radial Static Load Rating C0r (N) - 226000
Radial Dynamic Load Rating Cr (N) - 211000

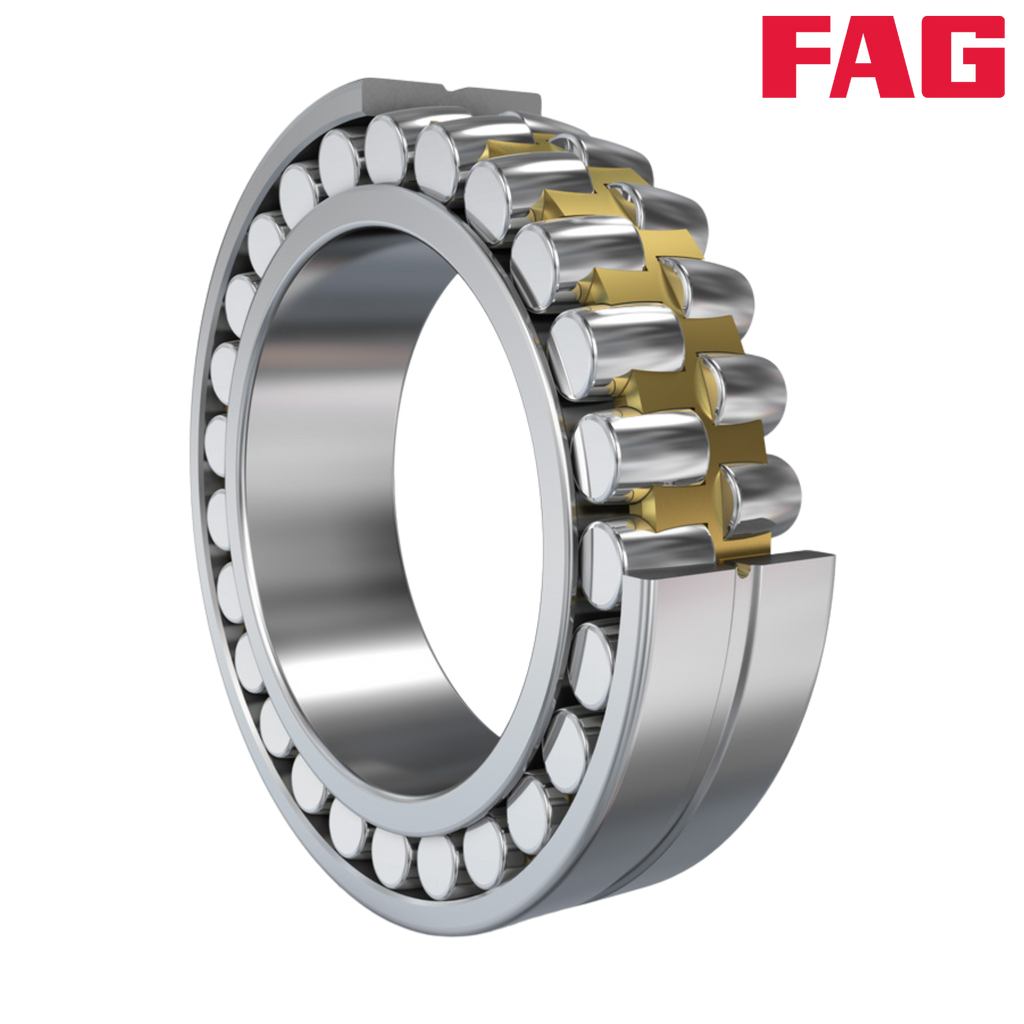

** Image is for representation purposes only
