Description
Brand - FAG
Item Number - 22224-E1-XL-C3 FAG
Category - Spherical Roller Bearing
Also known as - 0167044280030 22224CC/C3W33 22224-E1-C3
EAN - 4026677827272
Inner (d) MM - 120
Outer (D) MM - 215
Width (B) MM - 58
Inner (d) Inch - 4.7244
Outer (D) Inch - 8.4646
Width (B) Inch - 2.2835
Weight (kg) - 8.46
Bore - C - Cylindrical Bore
Lubrication Enhancement - W33 - Lubrication Groove and 3 Holes
Seal - No Seal
Cage Type - S - Steel or Standard Cage
Radial Internal Play - C3 Internal Play (Higher than Cn)
Precision - Standard Precision
Heat Stabilization - No Heat Stabilization - Temperatures up to 120 °C
Vibrating Screen Execution - Non Vibrating Screen Execution
Radial Static Load Rating C0r (N) - 740000
Radial Dynamic Load Rating Cr (N) - 640000

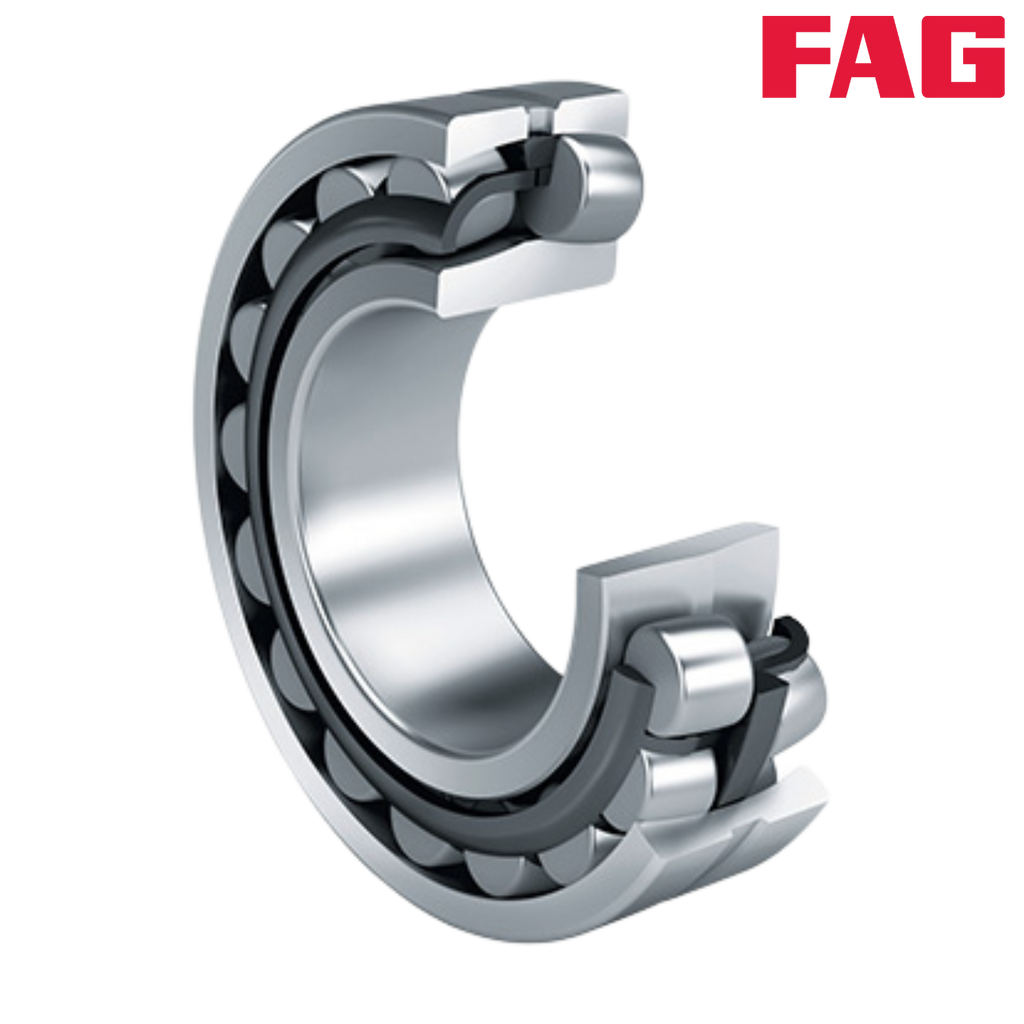

** Image is for representation purposes only
