Description
Brand - FAG
Item Number - 22244-BE-XL-C4-J15B-T56B FAG
Category - Spherical Roller Bearing
Also known as - 0623025404030 22244-BE-C4-J15B-T56B
Inner (d) MM - 220
Outer (D) MM - 400
Width (B) MM - 108
Weight (kg) - 58.4
Bore - C - Cylindrical Bore
Lubrication Enhancement - W33 - Lubrication Groove and 3 Holes
Seal - No Seal
Cage Type - S - Steel or Standard Cage
Radial Internal Play - C4 Internal Play (Higher than C3)
Precision - T5 - Radiussed Chamfer
Heat Stabilization - No Heat Stabilization - Temperatures up to 120 °C
Vibrating Screen Execution - Non Vibrating Screen Execution

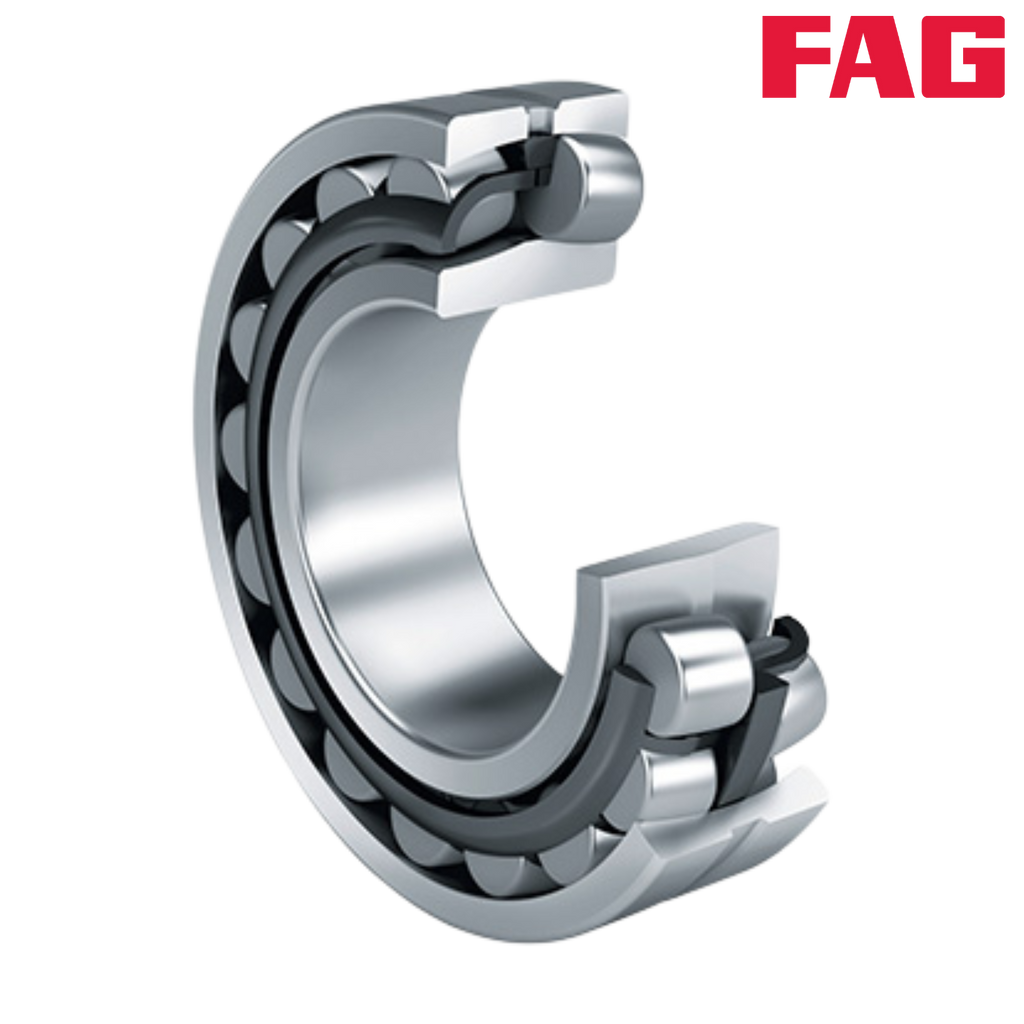

** Image is for representation purposes only
