Description
Brand - FAG
Item Number - 22256-BEA-XL-MB1 FAG
Category - Spherical Roller Bearing
Also known as - 0848177710000 22256-BEA-MB1
EAN - 4054364578596
Inner (d) MM - 280
Outer (D) MM - 500
Width (B) MM - 130
Inner (d) Inch - 11.0236
Outer (D) Inch - 19.685
Width (B) Inch - 5.1181
Weight (kg) - 113
Bore - C - Cylindrical Bore
Lubrication Enhancement - W33 - Lubrication Groove and 3 Holes
Seal - No Seal
Cage Type - M - Brass Cage
Radial Internal Play - Cn Normal Internal Play
Precision - Standard Precision
Heat Stabilization - No Heat Stabilization - Temperatures up to 120 °C
Vibrating Screen Execution - Non Vibrating Screen Execution
Radial Static Load Rating C0r (N) - 3700000
Radial Dynamic Load Rating Cr (N) - 2750000

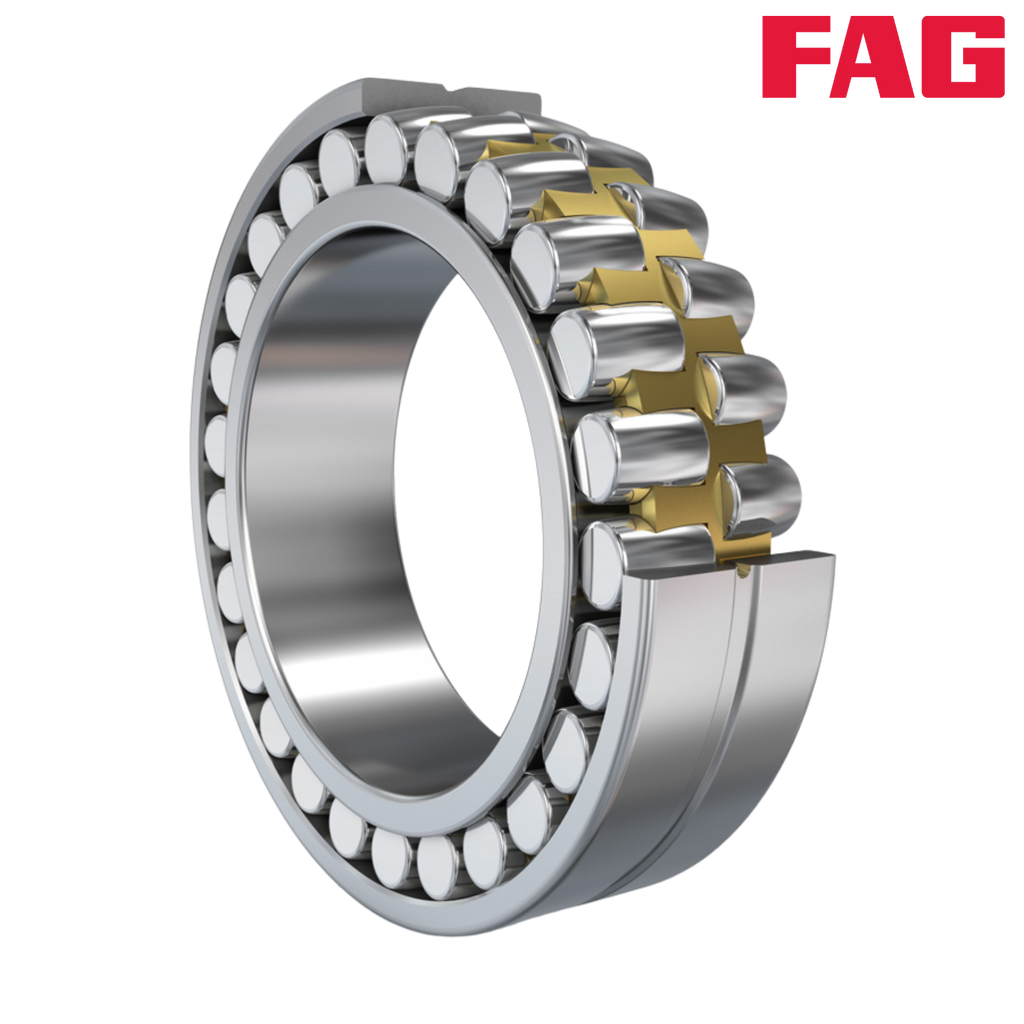

** Image is for representation purposes only
