Description
Brand - FAG
Item Number - 222S.307 FAG

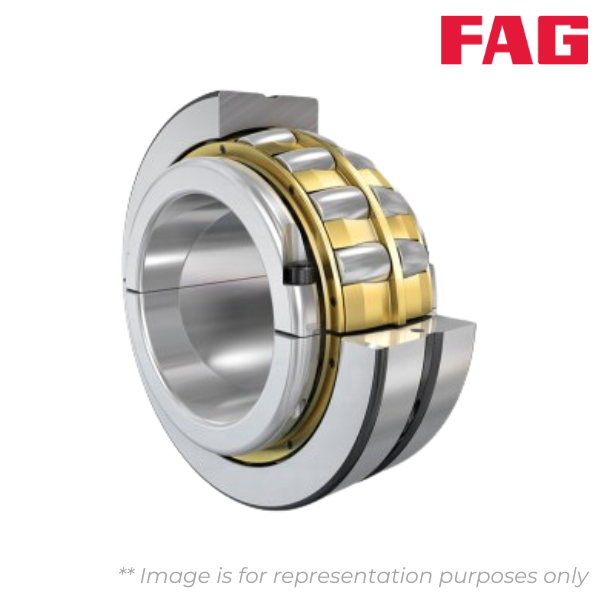

Category - Split Spherical Roller Bearing
Weight (m) kg - 6.86
Inner Diameter (d) inch - 3.4375
Inner Diameter (d) mm - 87.313
Outer Diameter (D) mm - 180
Outer Ring Width (C) mm - 46
Inner Ring Width (B) mm - 76
Minimum Chamfer Dimension (r) mm - 2.1
Basic Radial Dynamic Load Rating (Cr) kN - 285
Basic Radial Static Load Rating (C0r) kN - 360
Limiting Value of Fa/Fr for The Applicability of Diff. Values of Factors X and Y (e) - 0.23
Dynamic Axial Load Factor (Y1) - 2.9
Dynamic Axial Load Factor (Y2) - 4.31
Static Axial Load Factor (Y0) - 2.83
Fatigue Radial Load Limit (Cur) kN - 32.5
Maximum Axial Load (Fa) - 7.6
Limiting speed (nG) min–1 - 1700
Tightening Torque Clamping Screw (Ni) Nm - 14
Tightening Torque Clamping Screw (Ma) Nm - 14
Bearing Designation - 22220K
Adapter Sleeve - SNW20.307
Housing - H320.307
