Description
Brand - FAG
Item Number - 222S.415-MA FAG

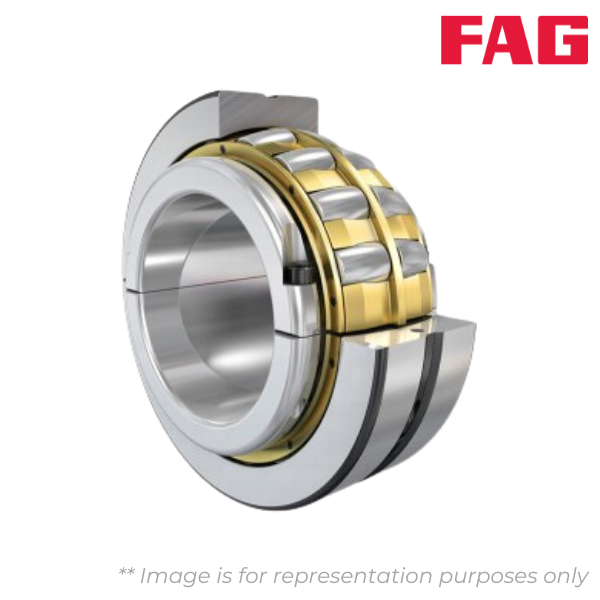

Category - Split Spherical Roller Bearing
Weight (m) kg - 17.9
Inner Diameter (d) inch - 4.9375
Inner Diameter (d) mm - 125.413
Outer Diameter (D) mm - 250
Outer Ring Width (C) mm - 68
Inner Ring Width (B) mm - 110
Minimum Chamfer Dimension (r) mm - 3
Basic Radial Dynamic Load Rating (Cr) kN - 585
Basic Radial Static Load Rating (C0r) kN - 780
Limiting Value of Fa/Fr for The Applicability of Diff. Values of Factors X and Y (e) - 0.26
Dynamic Axial Load Factor (Y1) - 2.62
Dynamic Axial Load Factor (Y2) - 3.9
Static Axial Load Factor (Y0) - 2.56
Fatigue Radial Load Limit (Cur) kN - 53
Maximum Axial Load (Fa) - 13.8
Limiting speed (nG) min–1 - 850
Tightening Torque Clamping Screw (Ni) Nm - 35
Tightening Torque Clamping Screw (Ma) Nm - 14
Bearing Designation - 22228K
Adapter Sleeve - SNW28.415
Housing - H3128.415
