Description

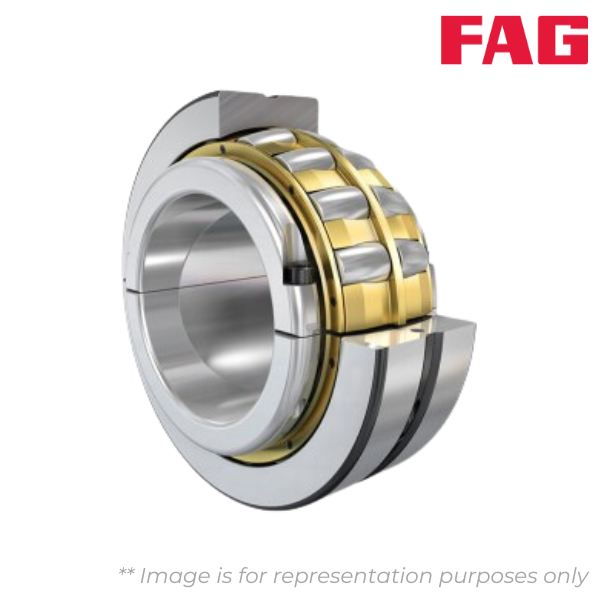

Brand - FAG
Item Number - 222S.507-MA FAG
Category - Split Spherical Roller Bearing
Weight (m) kg - 31.3
Inner Diameter (d) inch - 5.4375
Inner Diameter (d) mm - 138.113
Outer Diameter (D) mm - 290
Outer Ring Width (C) mm - 80
Inner Ring Width (B) mm - 124
Minimum Chamfer Dimension (r) mm - 3
Basic Radial Dynamic Load Rating (Cr) kN - 780
Basic Radial Static Load Rating (C0r) kN - 1060
Limiting Value of Fa/Fr for The Applicability of Diff. Values of Factors X and Y (e) - 0.25
Dynamic Axial Load Factor (Y1) - 2.69
Dynamic Axial Load Factor (Y2) - 4
Static Axial Load Factor (Y0) - 2.63
Fatigue Radial Load Limit (Cur) kN - 74
Maximum Axial Load (Fa) - 22.2
Limiting speed (nG) min–1 - 750
Tightening Torque Clamping Screw (Ni) Nm - 69
Tightening Torque Clamping Screw (Ma) Nm - 35
Bearing Designation - 22232K
Adapter Sleeve - SNW32.507
Housing - H3132.507
