Description
Brand - FAG
Item Number - 222SM135-TVPA FAG
Category - Spherical Roller Bearing
Also known as - 190191570000
EAN - 4012801478847
Inner (d) MM - 135
Outer (D) MM - 270
Width (B) MM - 73
Inner (d) Inch - 5.315
Outer (D) Inch - 10.6299
Width (B) Inch - 2.874
Weight (kg) - 22.6
Bore - C - Cylindrical Bore
Lubrication Enhancement - W33 - Lubrication Groove and 3 Holes
Seal - No Seal
Cage Type - P - Plastic Molded Cage
Radial Internal Play - Cn Normal Internal Play
Precision - Standard Precision
Heat Stabilization - No Heat Stabilization - Temperatures up to 120 °C
Vibrating Screen Execution - Non Vibrating Screen Execution
Radial Static Load Rating C0r (N) - 1020000
Radial Dynamic Load Rating Cr (N) - 730000

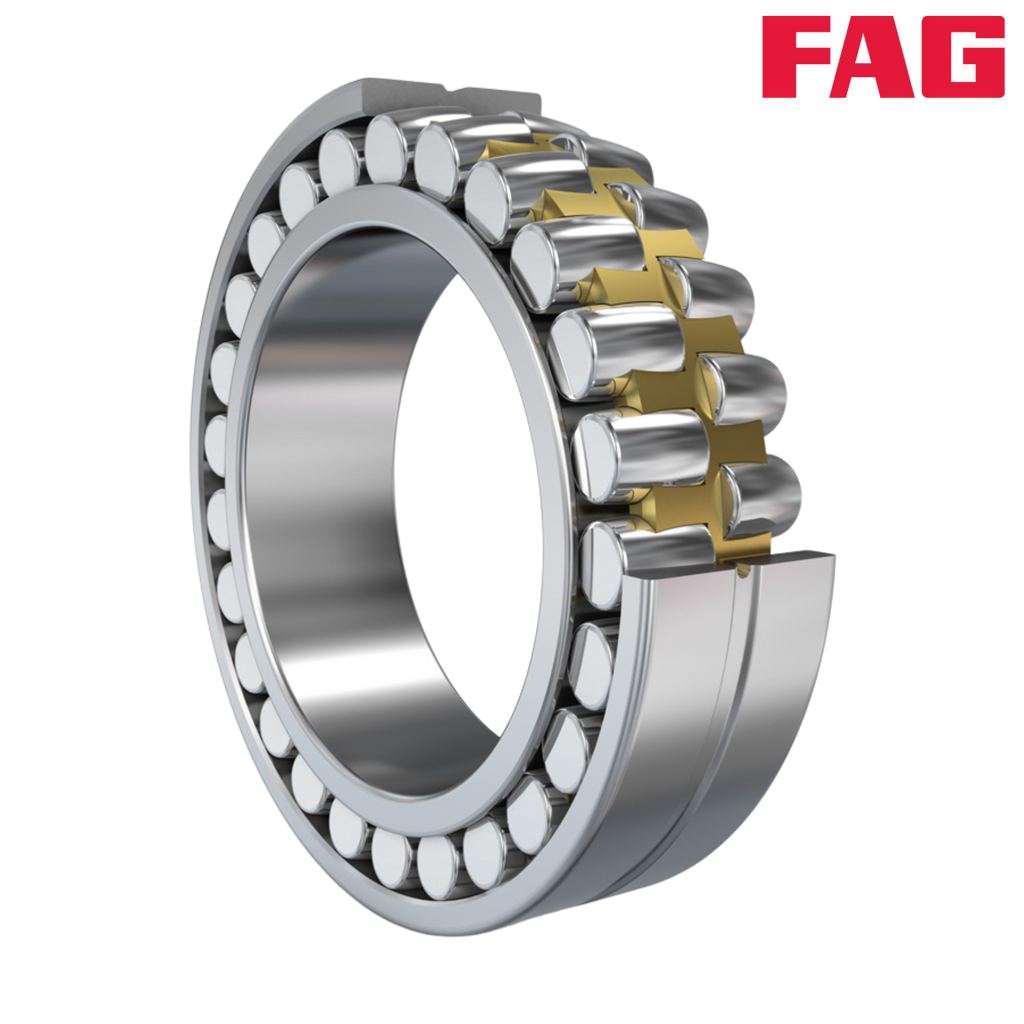

** Image is for representation purposes only
