Description
Brand - FAG
Item Number - 222SM75-TVPA FAG
Category - Spherical Roller Bearing
Also known as - 0190192540000 22217K + H317 + SNV150
EAN - 4012801478892
Inner (d) MM - 75
Outer (D) MM - 150
Width (B) MM - 36
Inner (d) Inch - 2.9528
Outer (D) Inch - 5.9055
Width (B) Inch - 1.4173
Weight (kg) - 4.5
Bore - C - Cylindrical Bore
Lubrication Enhancement - W33 - Lubrication Groove and 3 Holes
Seal - No Seal
Cage Type - P - Plastic Molded Cage
Radial Internal Play - Cn Normal Internal Play
Precision - Standard Precision
Heat Stabilization - No Heat Stabilization - Temperatures up to 120 °C
Vibrating Screen Execution - Non Vibrating Screen Execution
Radial Static Load Rating C0r (N) - 237000
Radial Dynamic Load Rating Cr (N) - 184000

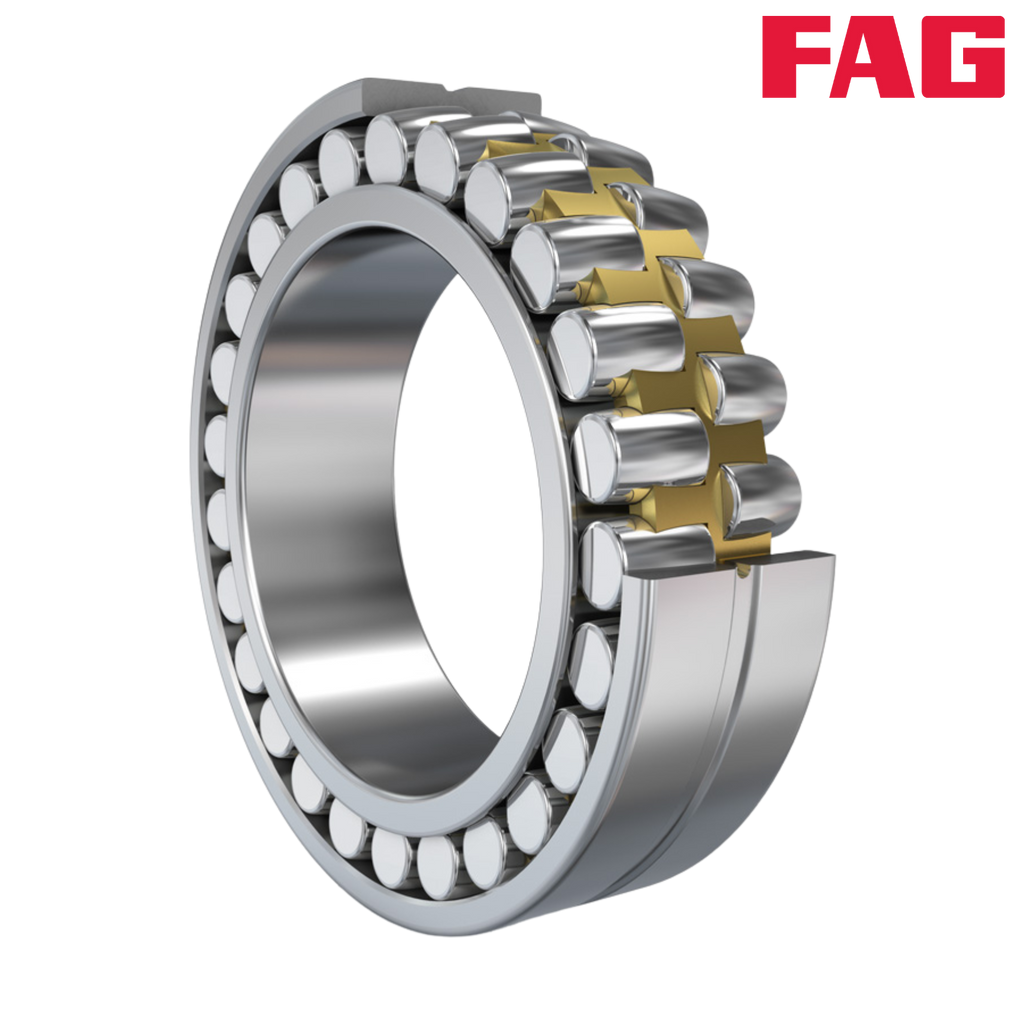

** Image is for representation purposes only
