Description
Brand - FAG
Item Number - 22309-E1-XL-C4 FAG
Category - Spherical Roller Bearing
Also known as - 0167050680040 22309-E1-C4
EAN - 4026677806727
Inner (d) MM - 45
Outer (D) MM - 100
Width (B) MM - 36
Inner (d) Inch - 1.7717
Outer (D) Inch - 3.937
Width (B) Inch - 1.4173
Weight (kg) - 1.3
Bore - C - Cylindrical Bore
Lubrication Enhancement - W33 - Lubrication Groove and 3 Holes
Seal - No Seal
Cage Type - S - Steel or Standard Cage
Radial Internal Play - C4 Internal Play (Higher than C3)
Precision - Standard Precision
Heat Stabilization - No Heat Stabilization - Temperatures up to 120 °C
Vibrating Screen Execution - Non Vibrating Screen Execution
Radial Static Load Rating C0r (N) - 183000
Radial Dynamic Load Rating Cr (N) - 187000

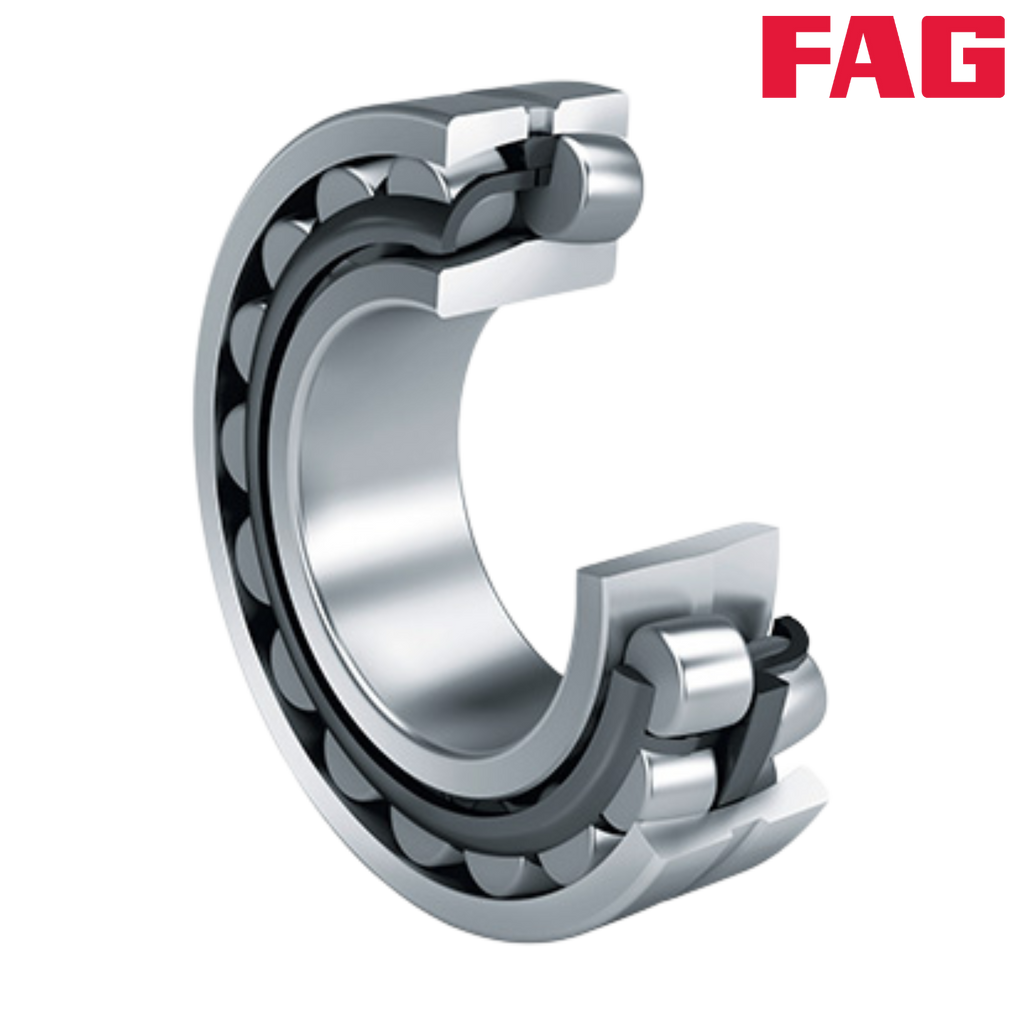

** Image is for representation purposes only
