Description
Brand - FAG
Item Number - 22317-E1-XL-S3-C4 FAG
Category - Spherical Roller Bearing
Also known as - 0533772300040 22317-E1-S3-C4
Inner (d) MM - 85
Outer (D) MM - 180
Width (B) MM - 60
Weight (kg) - 6.81
Bore - C - Cylindrical Bore
Lubrication Enhancement - W33 - Lubrication Groove and 3 Holes
Seal - No Seal
Cage Type - S - Steel or Standard Cage
Radial Internal Play - C4 Internal Play (Higher than C3)
Precision - Standard Precision
Heat Stabilization - S3 - Temperatures up to 300 °C
Vibrating Screen Execution - Non Vibrating Screen Execution
Radial Static Load Rating C0r (N) - 560000
Radial Dynamic Load Rating Cr (N) - 540000

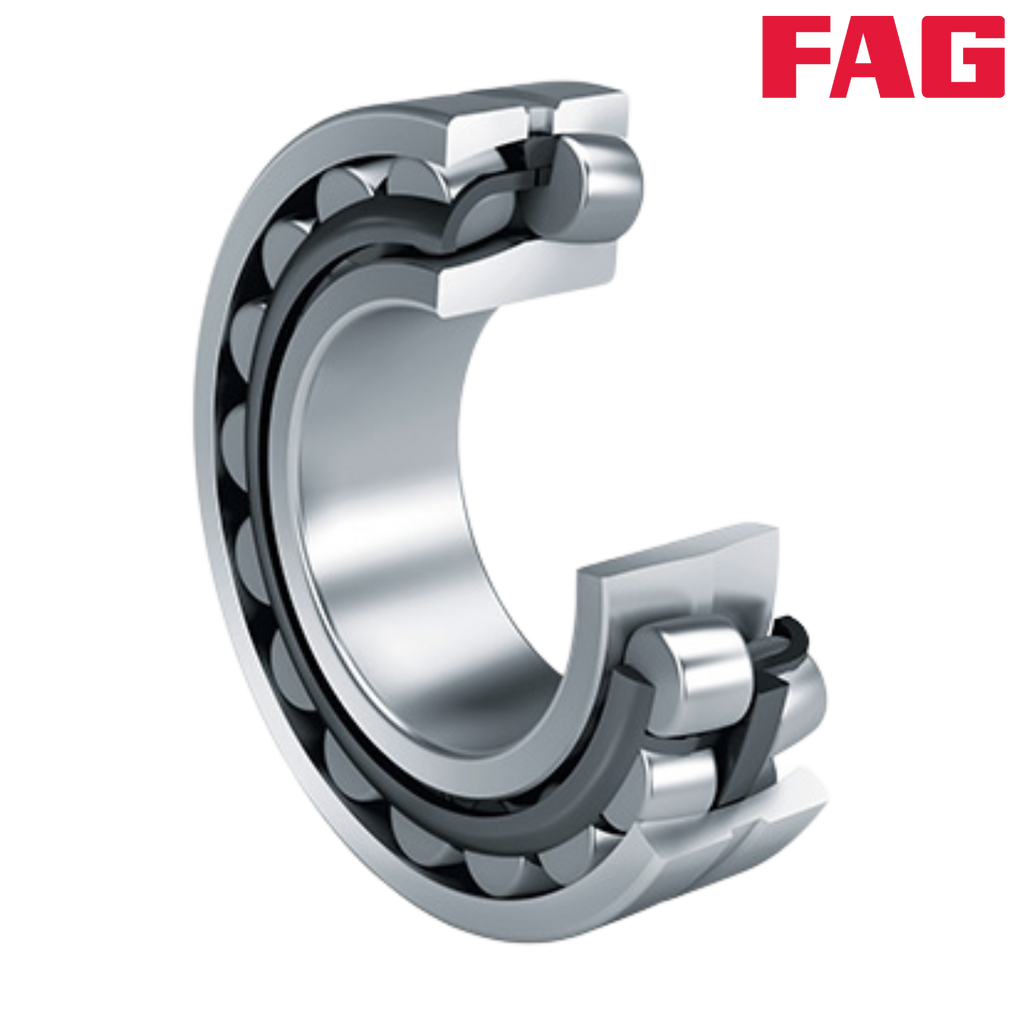

** Image is for representation purposes only
