Description
Brand - FAG
Item Number - 22319-E1-XL-H40-T41A FAG
Category - Spherical Roller Bearing
Also known as - 0386907720000 22319-E1-H40-T41A
EAN - 4026677893871
Inner (d) MM - 95
Outer (D) MM - 200
Width (B) MM - 67
Inner (d) Inch - 3.7402
Outer (D) Inch - 7.874
Width (B) Inch - 2.6378
Weight (kg) - 9.33
Bore - C - Cylindrical Bore
Lubrication Enhancement - W - No Lubrication Groove or Holes
Seal - No Seal
Cage Type - S - Steel or Standard Cage
Radial Internal Play - C4 Internal Play (Higher than C3)
Precision - Standard Precision
Heat Stabilization - No Heat Stabilization - Temperatures up to 120 °C
Vibrating Screen Execution - Vibrating Screen Execution
Radial Static Load Rating C0r (N) - 700000
Radial Dynamic Load Rating Cr (N) - 670000

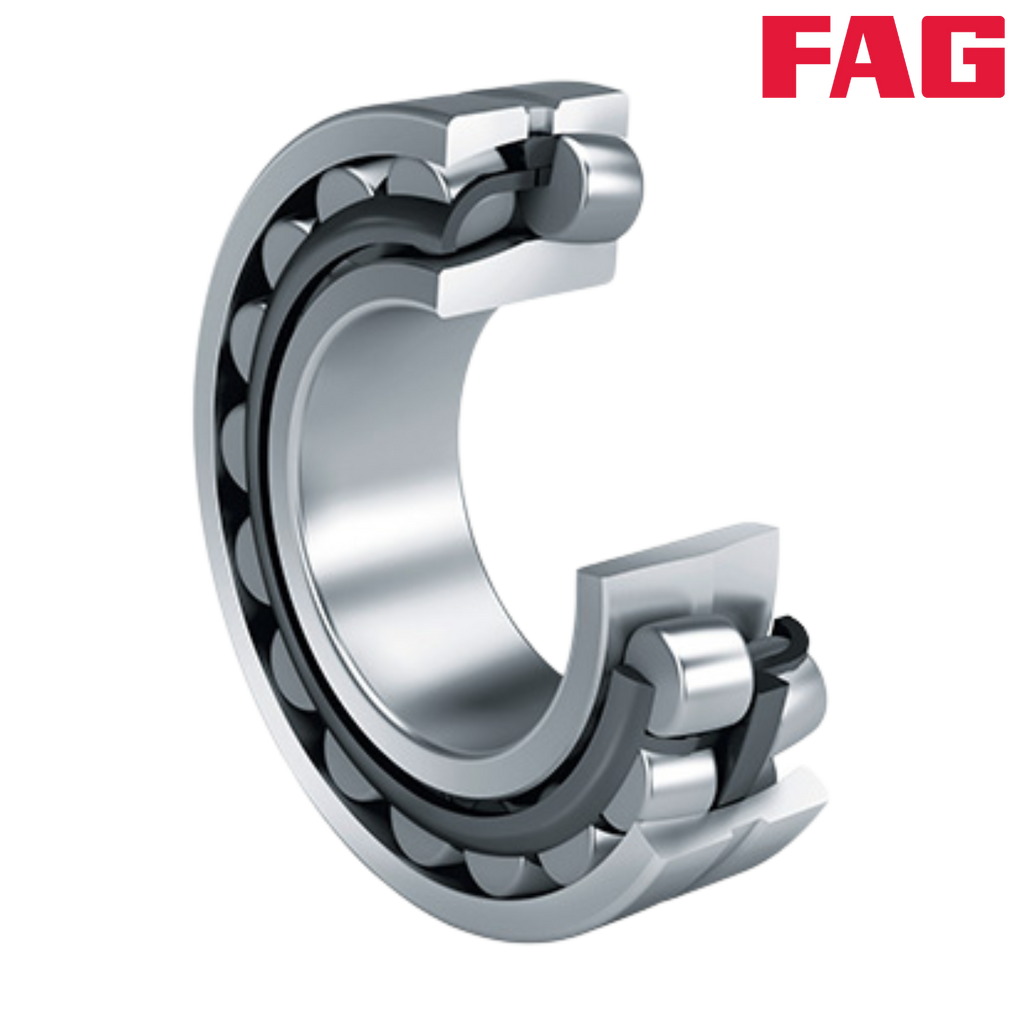

** Image is for representation purposes only
