Description
Brand - FAG
Item Number - 22320-E1-XL-H40-C3 FAG
Category - Spherical Roller Bearing
Also known as - 0390901670030 22320-E1-H40-C3
EAN - 4012802158144
Inner (d) MM - 100
Outer (D) MM - 215
Width (B) MM - 73
Inner (d) Inch - 3.937
Outer (D) Inch - 8.4646
Width (B) Inch - 2.874
Weight (kg) - 12.1
Bore - C - Cylindrical Bore
Lubrication Enhancement - W - No Lubrication Groove or Holes
Seal - No Seal
Cage Type - S - Steel or Standard Cage
Radial Internal Play - C3 Internal Play (Higher than Cn)
Precision - Standard Precision
Heat Stabilization - No Heat Stabilization - Temperatures up to 120 °C
Vibrating Screen Execution - Non Vibrating Screen Execution
Radial Static Load Rating C0r (N) - 920000
Radial Dynamic Load Rating Cr (N) - 810000

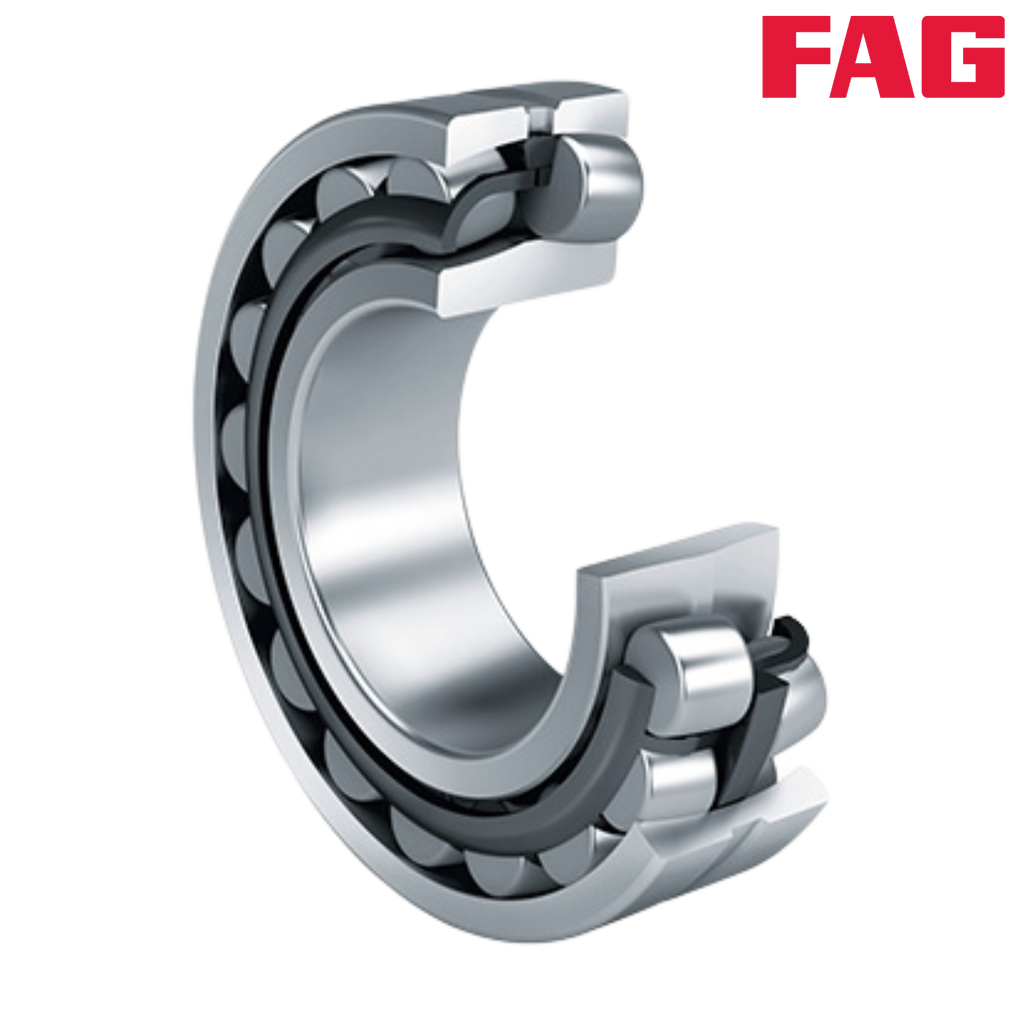

** Image is for representation purposes only
