Description
Brand - FAG
Item Number - 22326-E1A-XL-MA-T41A-C3 FAG
Category - Spherical Roller Bearing
Also known as - 190220500030
EAN - 4026677866080
Inner (d) MM - 130
Outer (D) MM - 280
Width (B) MM - 93
Inner (d) Inch - 5.1181
Outer (D) Inch - 11.0236
Width (B) Inch - 3.6614
Weight (kg) - 27.1
Bore - C - Cylindrical Bore
Lubrication Enhancement - W33 - Lubrication Groove and 3 Holes
Seal - No Seal
Cage Type - MA - Brass Cage, Centered on Outer Ring
Radial Internal Play - C3 Internal Play (Higher than Cn)
Precision - Standard Precision
Heat Stabilization - No Heat Stabilization - Temperatures up to 120 °C
Vibrating Screen Execution - Vibrating Screen Execution

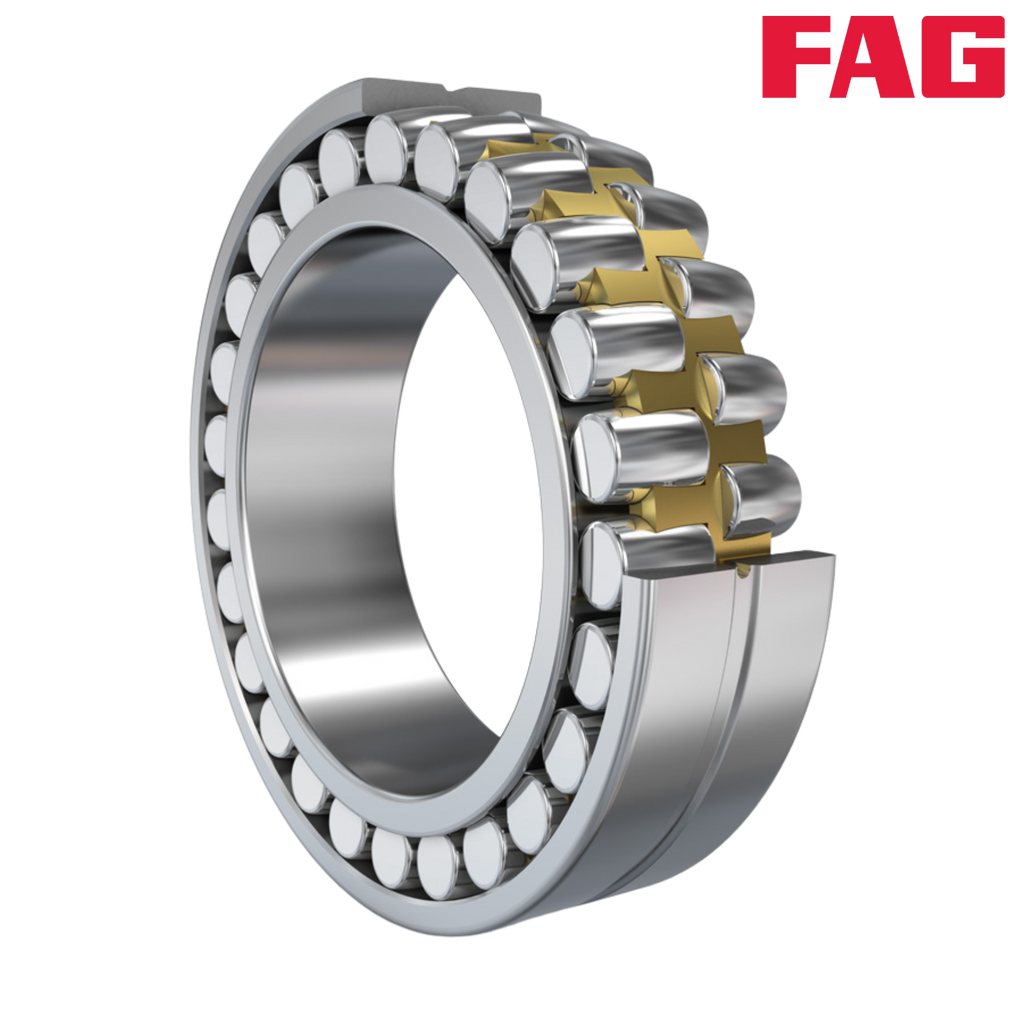

** Image is for representation purposes only
