| Outer Diameter | 581.025 mm |
| Height | 193.777 mm |
| Feature Diameter | 508.0 mm |
| Bearing Weight | 318.0 kg |
| Basic Static Load Rating, Axial | 43500000.0 N |
| Outer Diameter Of Shaft Washer | 578.663 mm |
| Shaft Washer Height | 38.1 mm |
| Spherical Radius | 1422.4 mm |
| Maximum Housing Chamfer Diameter | 6.0 mm |
Description

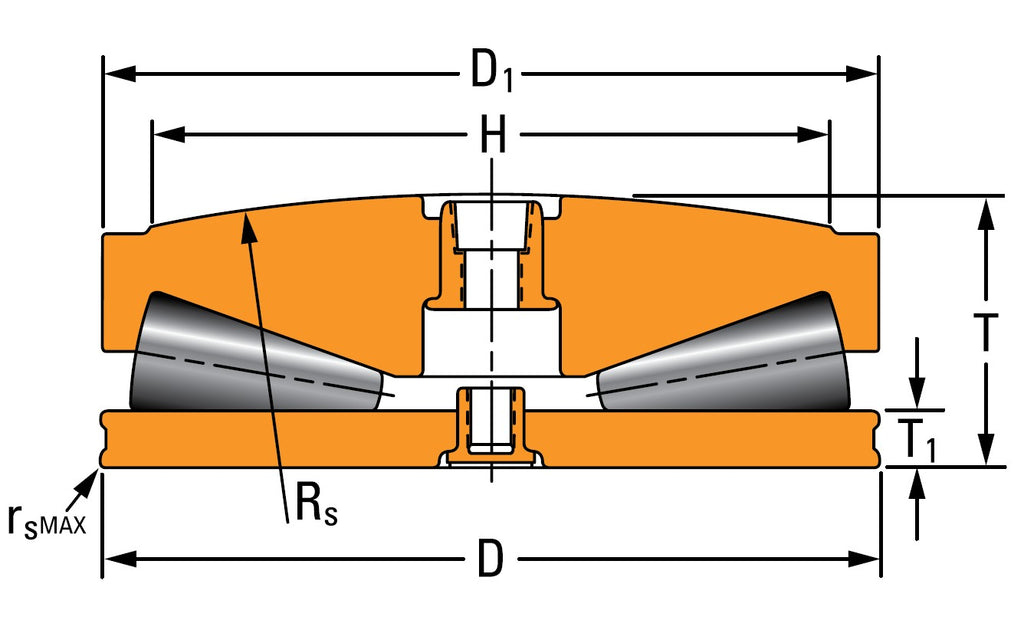

Dimension Denotation of Diagram :
d – Inner Diameter
D – Outer Diameter
D1 – Outer Diameter Of Shaft Washer
T – Height
H – Feature Diameter
Rs – Spherical Radius
R – Maximum Shaft Chamfer Diameter
rs max – Maximum Housing Chamfer Diameter
Other salient points to be noted:

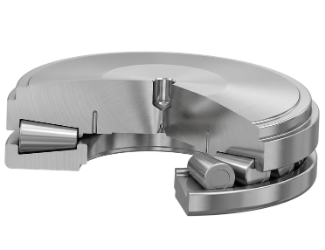

The Timken TTHDFLSX-1 is a premium thrust tapered roller bearing engineered specifically for heavy-duty rolling mill screw-down systems in the metals industry. Built with a full complement design, it maximizes load-carrying capacity for extreme industrial applications.
-
Industry Specific: Designed expressly for metals industry rolling mill screw-down systems.
-
High Load Capacity: Full complement (cageless) design maximizes the number of rollers to handle immense thrust loads.
-
Unique Profile: Features one upper tapered race with a special convex profile.
-
Base Design: Equipped with one lower flat race for stable seating.
** Images are for representation purposes only
