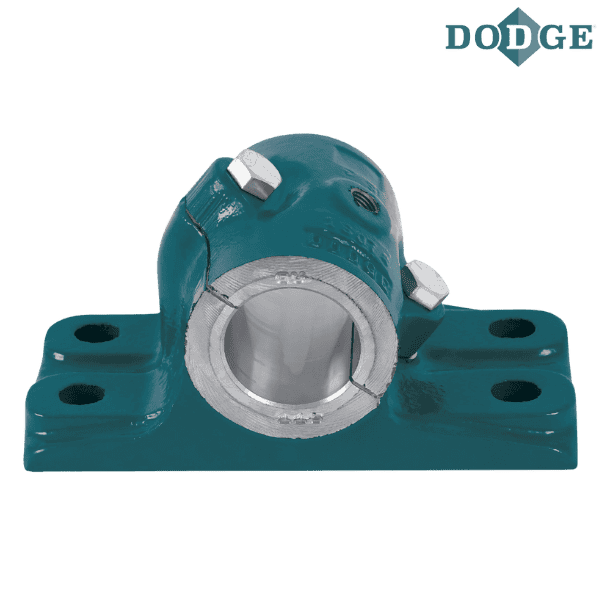

230050 DODGE - P4B-BAA-115

Brand - DODGE
Item Number - 230050 DODGE - P4B-BAA-115
Category - Sleeve Bearings - Angle Babbitted Pillow Blocks
Shaft Size (inch) - 1.9375
Description - P4B-BAA-115
Weight (lbs) - 11
Used on Frame - HD-200

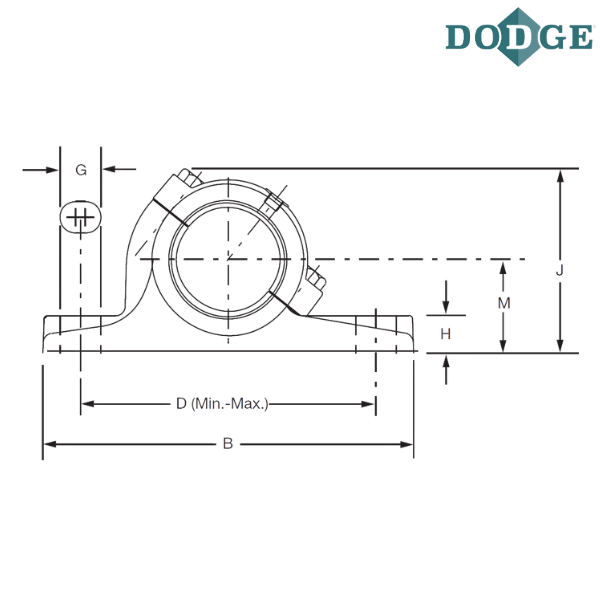

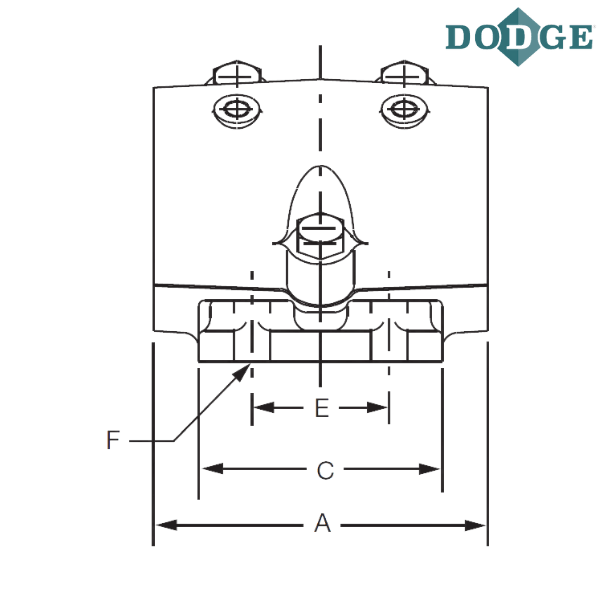

Length Through Bore (A) inch - 4
Overall Length (B) inch - 8.25
C (inch) - 3.5
Bolt to Bolt Minimum Distance (D min) inch - 6.3125
Bolt to Bolt Maximum Distance (D max) inch - 6.6875
E (inch) - 1.75
F-Bolt Diameter (inch) - 0.5
G (inch) - 0.75
H (inch) - 0.875
Overall Height (J) inch - 4.6875
Base to Center Height (M) inch - 2.25
Grease Cups (Pipe Tap) inch - 0.25
Grease Cups (Number Required) - 1
Grease Cups (Size) - 1

Notes :
P4B - Pillow Block, 4 Bolt Base
BAA - Babbitted Angle
115 - First Digit: Number Of Inches
Second And Third Digit: Sixteenths Of An Inch

** Images are for representation purposes only
