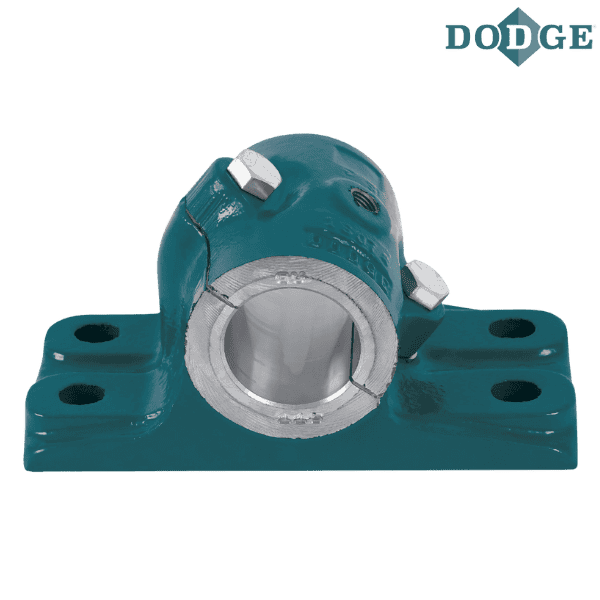

230071 DODGE - P4B-BAA-407

Brand - DODGE
Item Number - 230071 DODGE - P4B-BAA-407
Category - Sleeve Bearings - Angle Babbitted Pillow Blocks
Shaft Size (inch) - 4.4375
Description - P4B-BAA-407
Weight (lbs) - 84
Used on Frame - HD-400

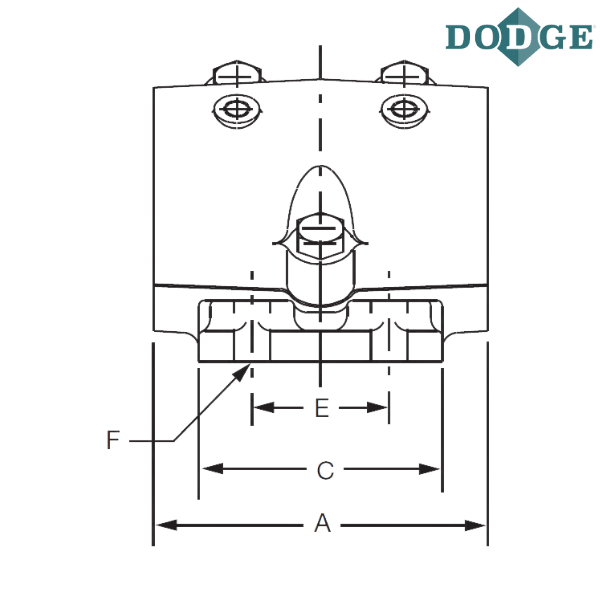

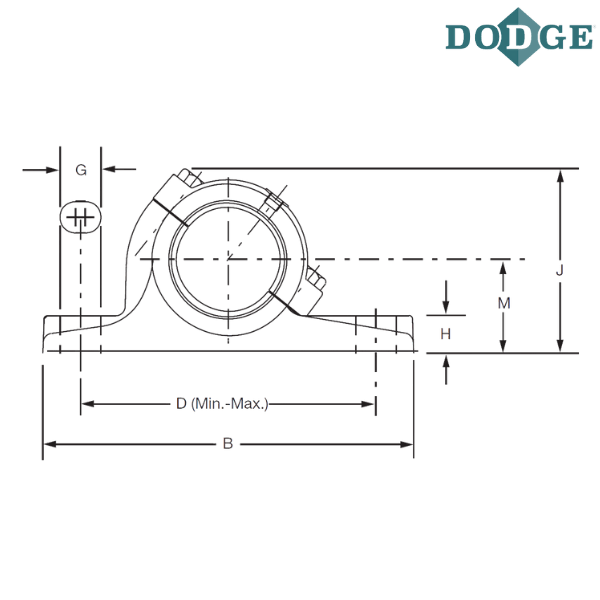

Length Through Bore (A) inch - 9
Overall Length (B) inch - 16.5625
C (inch) - 6.3125
Bolt to Bolt Minimum Distance (D min) inch - 12.9375
Bolt to Bolt Maximum Distance (D max) inch - 14.0625
E (inch) - 3.5
F-Bolt Diameter (inch) - 0.875
G (inch) - 1.5
H (inch) - 1.75
Overall Height (J) inch - 8.5
Base to Center Height (M) inch - 4.125
Grease Cups (Pipe Tap) inch - 0.5
Grease Cups (Number Required) - 1
Grease Cups (Size) - 4

Notes :
P4B - Pillow Block, 4 Bolt Base
BAA - Babbitted Angle
407 - First Digit: Number Of Inches
Second And Third Digit: Sixteenths Of An Inch

** Images are for representation purposes only
